Tube, Air Pump, Inlet: Removal: Removal

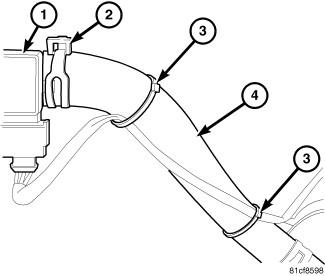

Fig 1: Air Inlet Tube At MAF

Courtesy of CHRYSLER LLC

1. Cut the tie straps (3) being careful not to damage the air inlet tube (4).
2. Remove the constant tension clamp (2) and remove the mass air flow (MAF) sensor (1) from the air inlet tube (4). Position MAF sensor (1) and wiring aside.
   Fig 2: Air Inlet Tube At Air Pump

   Courtesy of CHRYSLER LLC
3. Remove air inlet tube (3) by pushing the ends (1) together, while pulling the air inlet tube (3) away from air pump housing connection (2).
