P0711-Transmission Temperature Sensor Performance: Notes

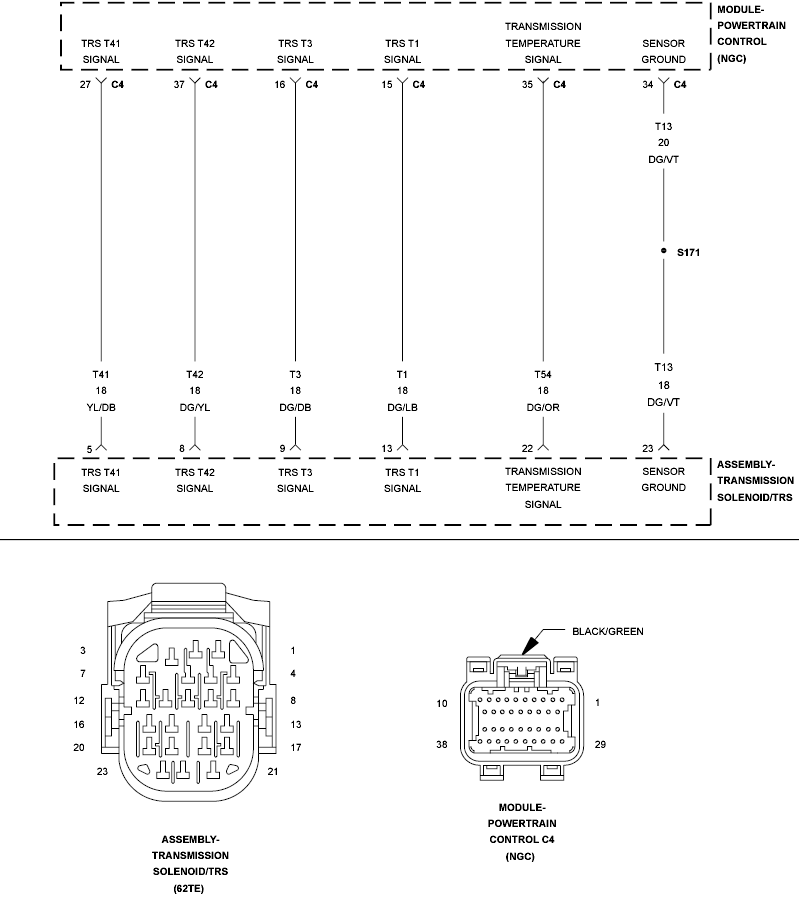

Fig 1: Transmission Range Sensor Circuit
GC0124076Courtesy of CHRYSLER LLC
