P0883-TCM Power Input High: Notes

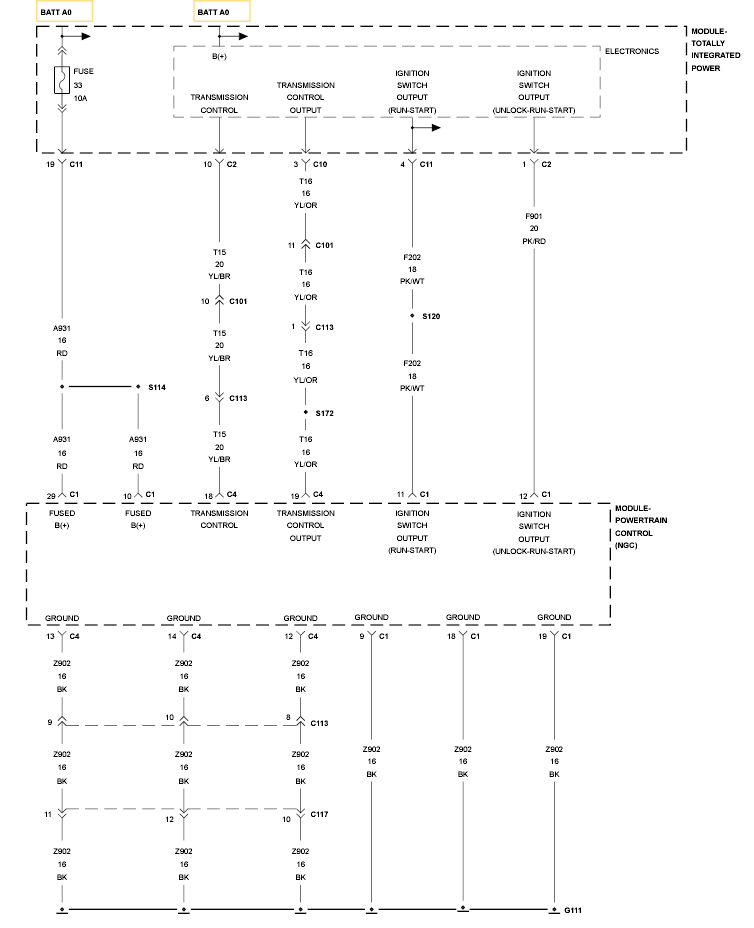

Fig 1: TCM Power Control Circuit
GC0124073Courtesy of CHRYSLER LLC
