Home › Chrysler › 2009 › Sebring Limited, 2D Convertible › Repair and Diagnosis › Transmission › Automatic Trans › Powertrain Control Module (Pcm) - Electrical Diagnostics - 62TE Automatic Transmission › DTC Troubleshooting › P0935-Line Pressure Sensor Circuit High › Notes

P0935-Line Pressure Sensor Circuit High: Notes

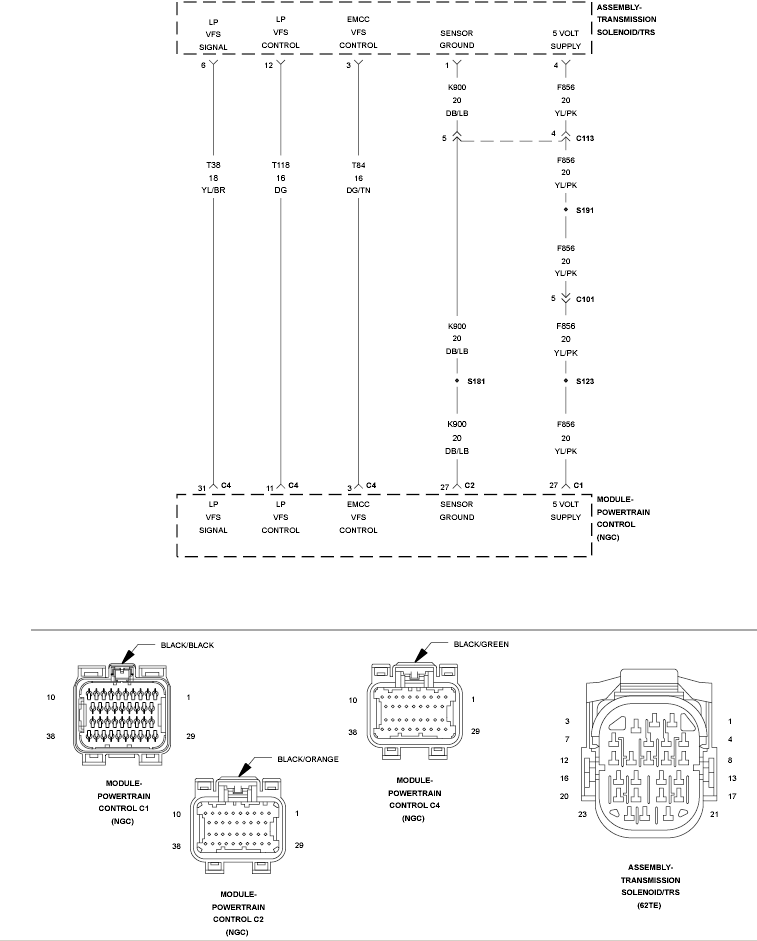

Fig 1: Line Pressure Sensor Circuit
GC0124127Courtesy of CHRYSLER LLC
