P0952-AUTOSTICK Input Circuit Low: Notes

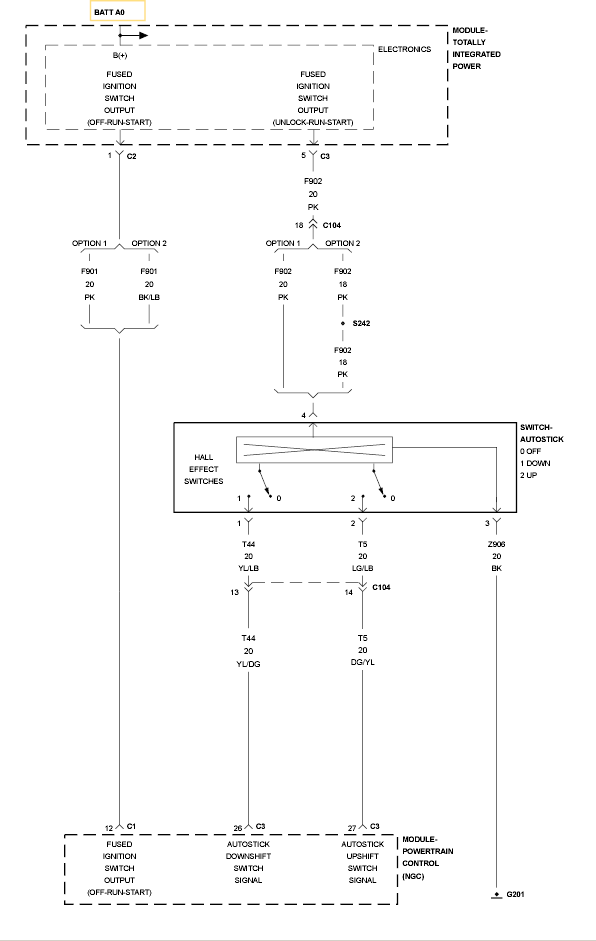

Fig 1: Autostick Input Circuit
GC0117410Courtesy of CHRYSLER LLC
