Home › Chrysler › 2009 › Sebring Limited, 2D Convertible › Repair and Diagnosis › Transmission › Automatic Trans › Powertrain Control Module (Pcm) - Electrical Diagnostics - 62TE Automatic Transmission › DTC Troubleshooting › P1794-Speed Sensor Ground Error › Notes

P1794-Speed Sensor Ground Error: Notes

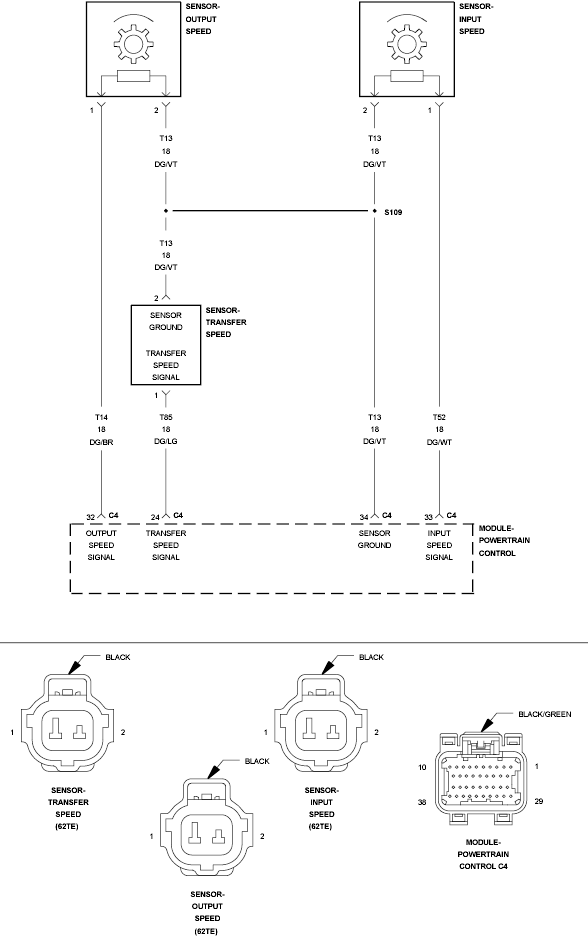

Fig 1: Transfer Speed Sensor Circuit
GC0124081Courtesy of CHRYSLER LLC
