3.0L Diesel

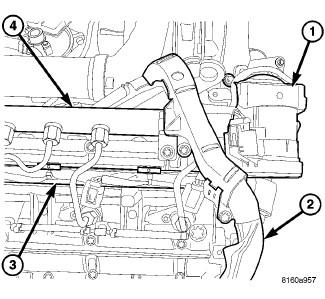

| 1 - EXHAUST GAS RECIRCULATION (EGR) VALVE |
| 2 - MAIN ENGINE WIRING HARNESS |
| 3 - FUEL INJECTOR WIRING HARNESS |
| 4 - LEFT FUEL RAIL |
- Clean EGR valve sealing surfaces.
- Lubricate the seal and install the EGR valve in intake manifold. Tighten EGR valve retaining bolts to 9 N.m (80 lbs.in).
- Connect the EGR valve wiring harness connector.
- Install engine cover. Refer to Engine - Installation
- Connect the negative battery cable. Refer to Electrical/Battery System/CABLES, Battery - Installation
