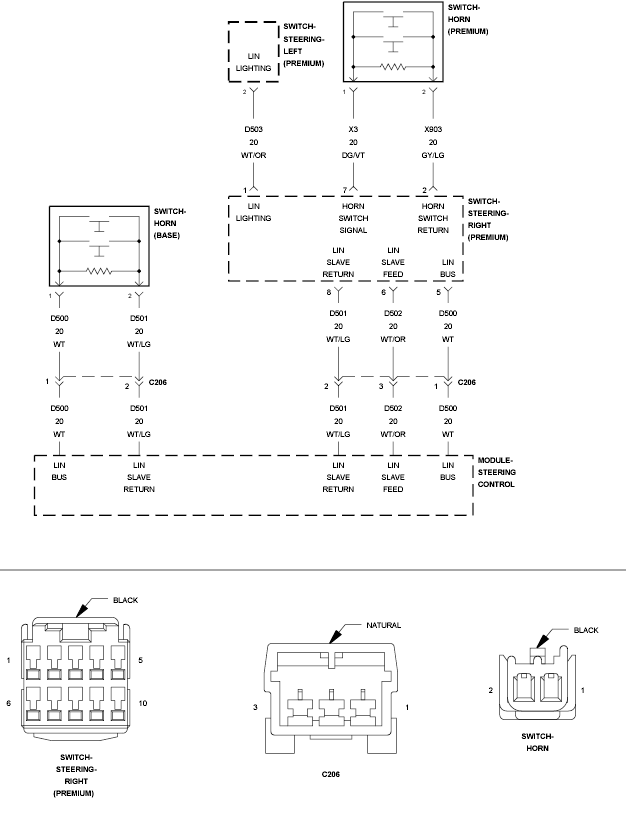

Home › Chrysler › 2010 › 300 C, AWD › Repair and Diagnosis › Steering › Steering Control Systems › Steering Control Module (SCM) - Electrical Diagnostics › DTC Troubleshooting › B2332-Horn Switch Input Circuit/Performance › Circuit Schematic
