MODULE, Engine Control: Installation: Installation

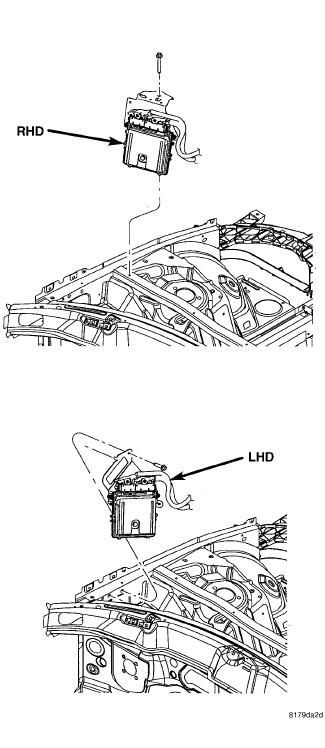

Fig 1: ECM Location

Courtesy of CHRYSLER LLC

1. If removed, position the bracket onto the Engine Control Module (ECM) and install the two retaining nuts. Tighten the nuts securely.
2. Position the ECM and bracket to the vehicle.
3. Install the two bolts that secure the ECM bracket to the inner fender. Tighten the bolts securely.
4. Connect the electrical connectors to the ECM.
5. Install the cowl panel cover. Refer to Body/Exterior/COVER, Cowl Panel - Installation .
6. Reconnect the negative battery cable.
