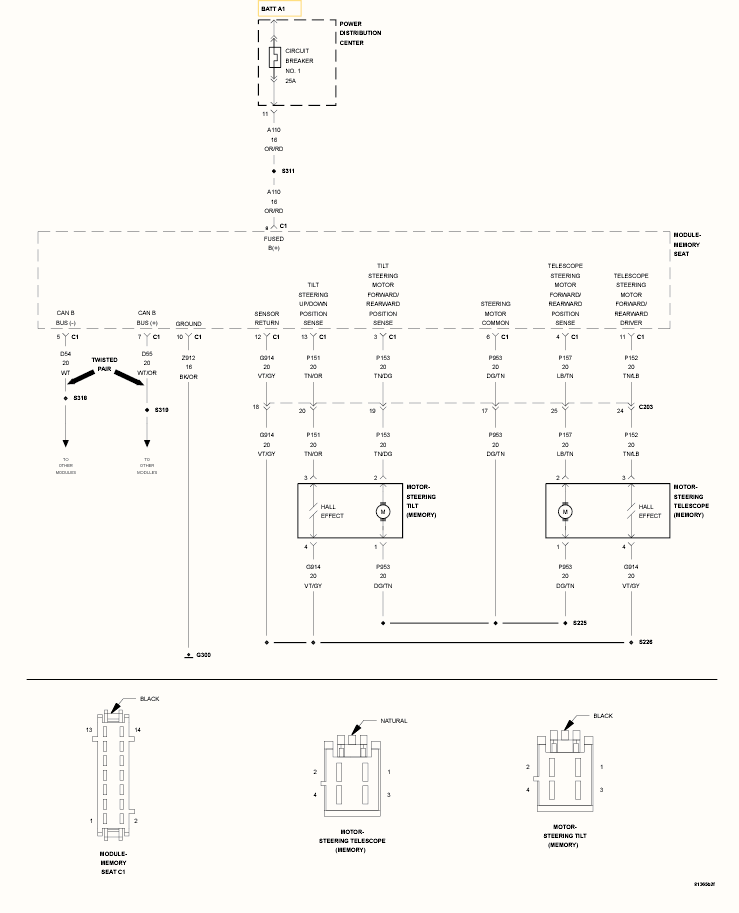

Home › Chrysler › 2010 › 300 Limited, AWD › Repair and Diagnosis › Steering › Steering Control Systems › Steering Control Module (SCM) - Electrical Diagnostics › DTC Troubleshooting › B1DA0-Steering Column Tilt Switch Circuit Stuck › Circuit Schematic
