Checking The Ignition Coil Performance - 5.7/SRT8: Notes

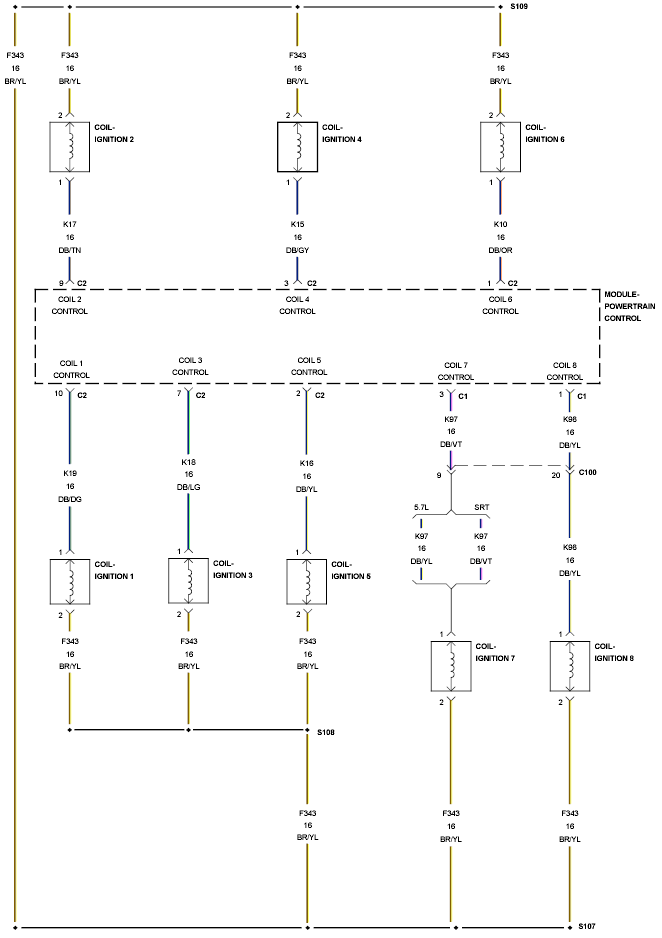

Fig 1: Ignition Coil - Circuit Schematic (5.7L/SRT8)

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
