DRIVEABILITY - Non-DTC Diagnostics
›
Checking The Map Sensor Performance
›
Notes
Checking The Map Sensor Performance: Notes

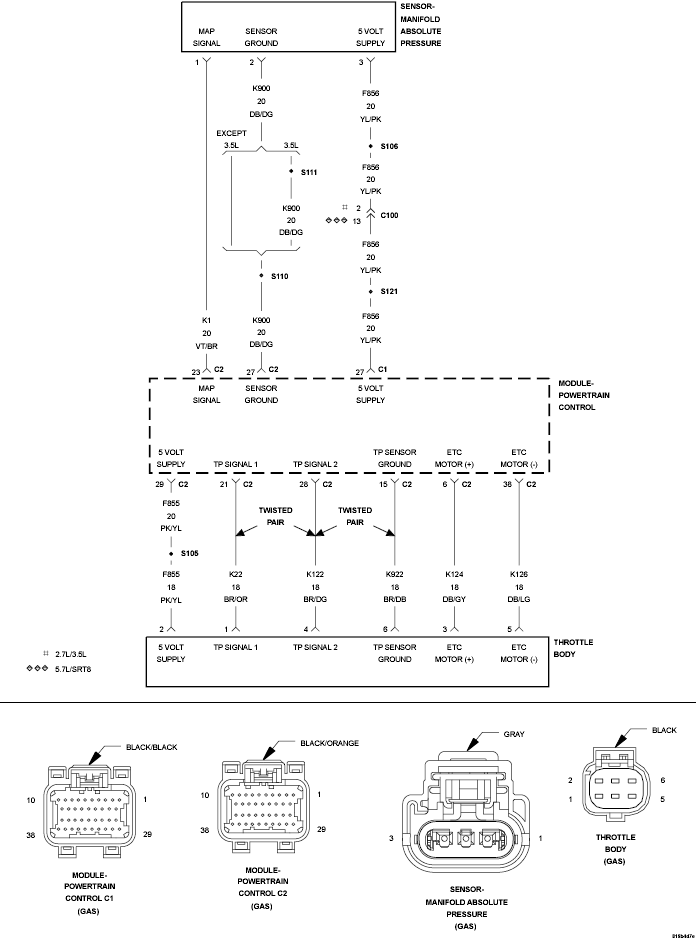

Fig 1: PCM, MAP, Throttle Body - Circuit Schematic
Courtesy of CHRYSLER LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
