MODULE, Door: Installation: Installation

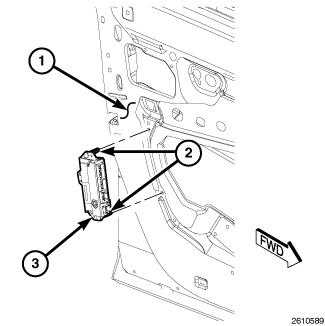

Fig 1: Door Control Module To Inner Door Panel

Courtesy of CHRYSLER LLC

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Refer to Electrical/Battery System - Standard Procedure .

1. Position the door control module (3) to the inner door panel (1).
2. Press the two plastic push-in fasteners firmly and evenly into the mounting holes of the inner door panel.
3. Reconnect the door wire harness connections to the door control module connector receptacles.
4. Reinstall the trim panel onto the inside of the front door. Refer to Body/Door - Front/PANEL, Door Trim - Installation .
5. Reconnect the battery negative cable.
