SENSOR, Boost Pressure: Description: Description
The boost pressure sensor is mounted in the mixing chamber below the intake manifold
. The sensor allows the ECM to monitor air pressure within the intake manifold.

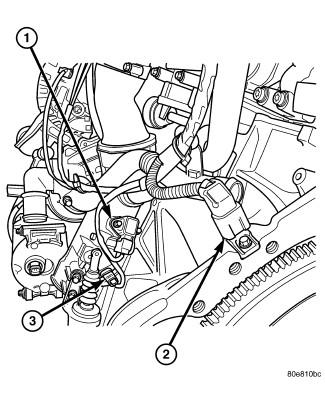

Courtesy of CHRYSLER LLC
| 1 - BOOST PRESSURE SENSOR |
| 2 - CRANKSHAFT POSITION (CKP) SENSOR |
| 3 - INTAKE AIR TEMPERATURE SENSOR |
