Ball Joint

NOTE: The removal and installation of the lower ball joint from the lower control arm is to be done with the lower control arm removed from the vehicle. See Front Suspension/Front/ARM, Lower Control - Removal

Fig 1: Seal Boot Removal

Courtesy of CHRYSLER LLC

1 - TOOL

2 - SEAL BOOT

3 - LOWER CONTROL ARM

Using a screwdriver or other suitable tool (1), pry the seal boot (2) off of the ball joint.

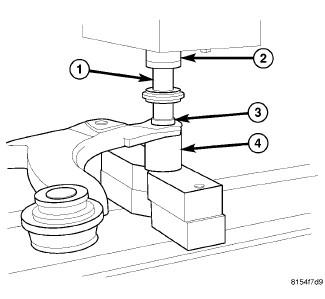

Fig 2: BALL JOINT REMOVAL
Courtesy of CHRYSLER LLC
Position the Receiver Cup (4), Special Tool 9930, on a hydraulic press open end up. Position the control arm on top of the Receiver Cup so that the bottom of the ball joint (3) sets inside.
Place the larger diameter end of the Adapter (1), Special Tool 6804, on top of the ball joint (3) as shown in illustration.
Lower the hydraulic press ram (2), pressing the ball joint completely out of the lower control arm, into the Receiver Cup.
Remove the tools, ball joint and arm from the hydraulic press.
