SENSOR, Mass Air Flow (MAF): Installation: Installation

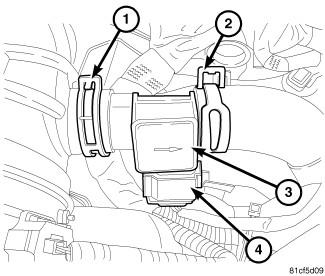

Fig 1: MASS AIR FLOW SENSOR

Courtesy of CHRYSLER LLC

1. Note the arrow direction on the sensor and correctly position the air flow sensor (3) to hoses.
2. Install constant tension clamps (1), (2) to secure air flow sensor (3) to hoses.
3. Connect air flow sensor electrical connector (4).
