VALVE, Exhaust Gas Recirculation (EGR): Installation: 3.5L

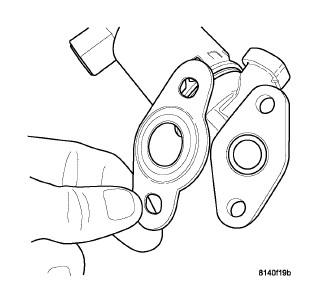

Fig 1: EGR VALVE GASKET

Courtesy of CHRYSLER LLC

1. Install new exhaust gas recirculate (EGR) valve gasket to EGR valve.
   Fig 2: EGR VALVE/SOLEN. REMOVAL - 4.0L

   Courtesy of CHRYSLER LLC
2. Install EGR valve (2), gasket and bolts (6) to cylinder head (1). Tighten to 30 N.m (22 ft. lbs.).

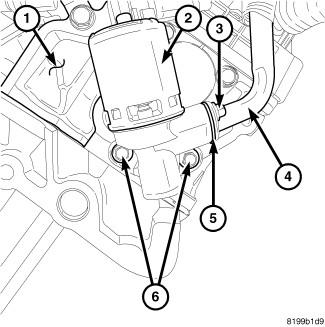

   Fig 3: EGR VALVE/SOLEN. REMOVAL - 4.0L

   Courtesy of CHRYSLER LLC
3. Install new gasket (5), EGR tube (4) and bolts (3) to EGR valve (2). Tighten to 15 N.m (11 ft. lbs.).

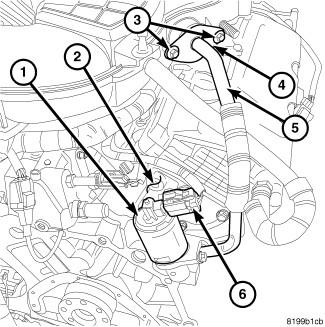

   Fig 4: EGR VALVE SOL. LOCA. - 4.0L

   Courtesy of CHRYSLER LLC
4. Connect electrical connector (6) to EGR valve (1).
5. Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
