P0883-TCM Power Input High: Notes

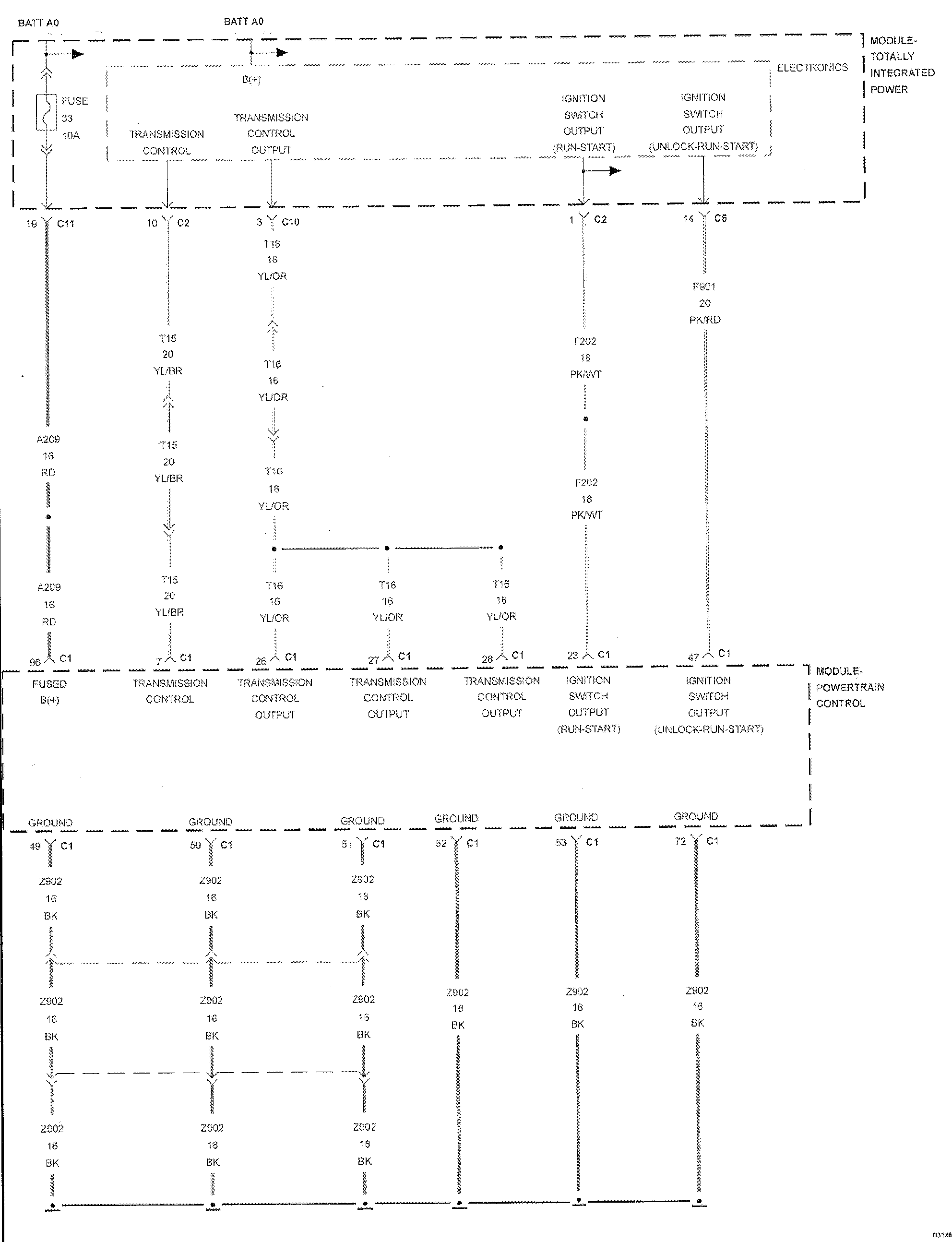

Fig 1: Transmission Control Module (TCM) Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
