C1464-Front Axle Disconnect Control Circuit Low: Notes

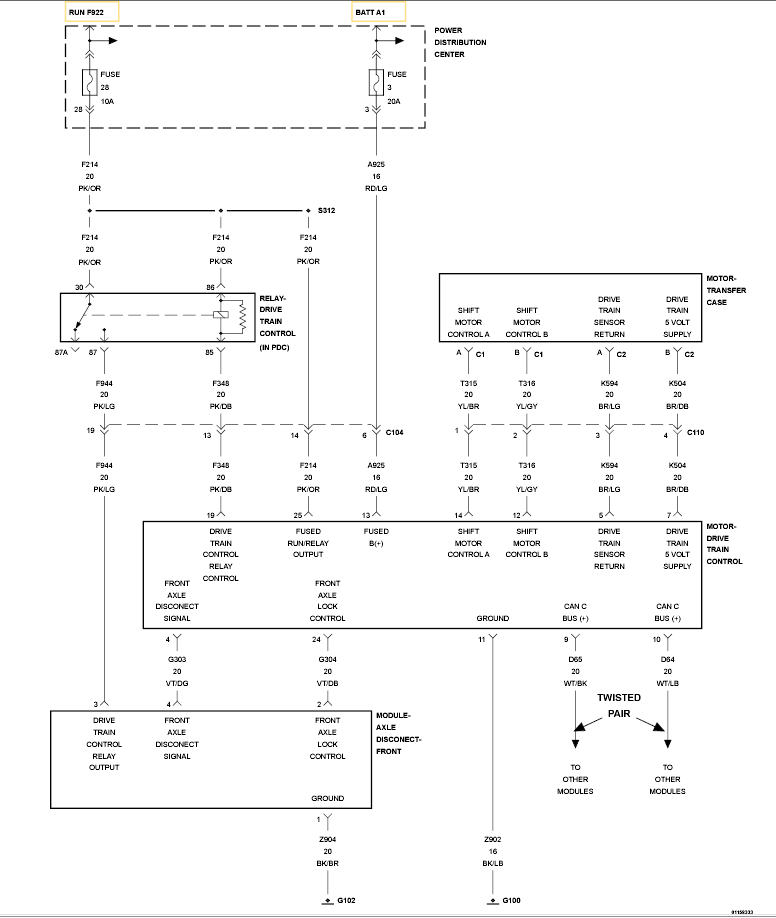

Fig 1: Drive Train Control Module Circuit Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
