300 Base, Gas
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
(Drivetrain Control Module (DTCM) - Electrical Diagnostics)
›
DTC Troubleshooting
›
C147A-Transfer Case Temperature Sensor High
›
Notes
C147A-Transfer Case Temperature Sensor High: Notes

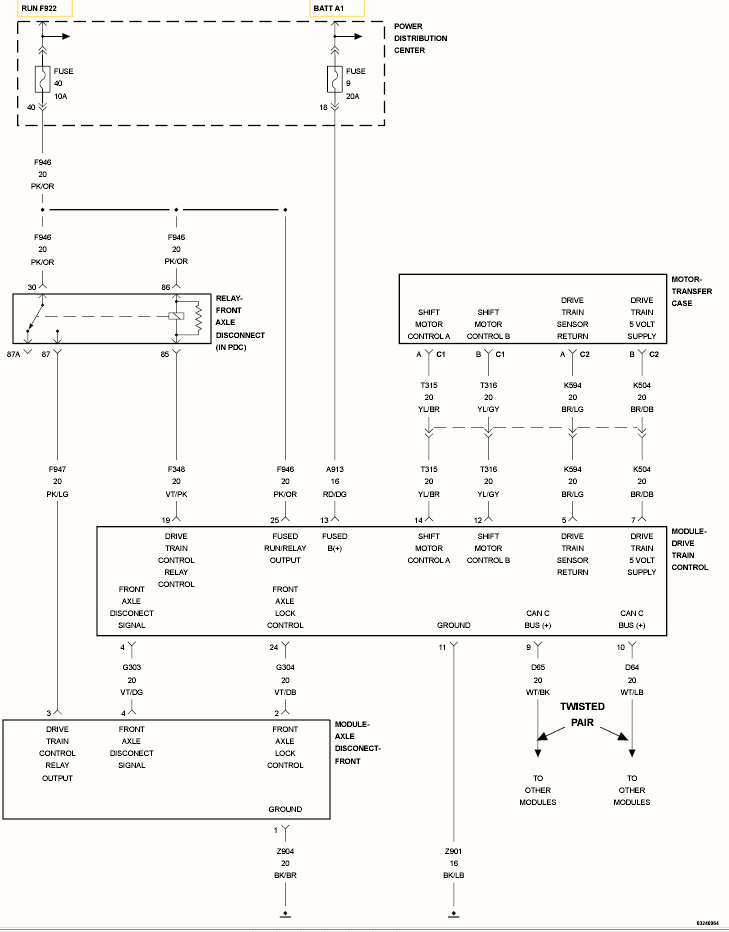

Fig 1: Drive Train Control Module Circuit Wiring Diagram
Courtesy of CHRYSLER LLC
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.
