P0160-O2 Sensor 2/2 No Activity Detected: Notes

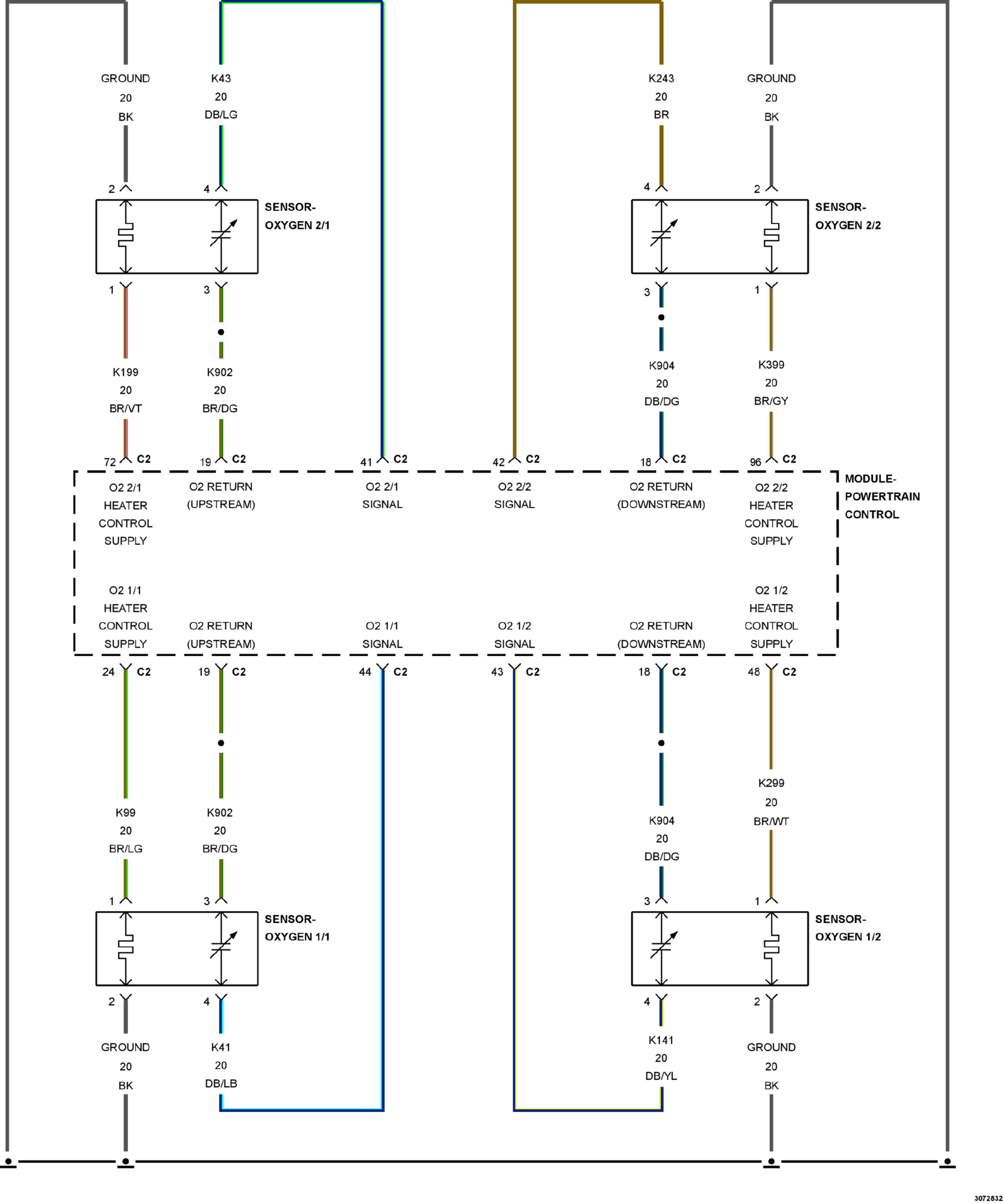

Fig 1: Oxygen Sensor Circuit Wiring Diagram
GC0149860Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
