Wireless Control Module (WCM) - Electrical Diagnostics
›
DTC Troubleshooting
›
B1A67-Steering Column Lock Module Bolt Control Performance
›
Notes
B1A67-Steering Column Lock Module Bolt Control Performance: Notes

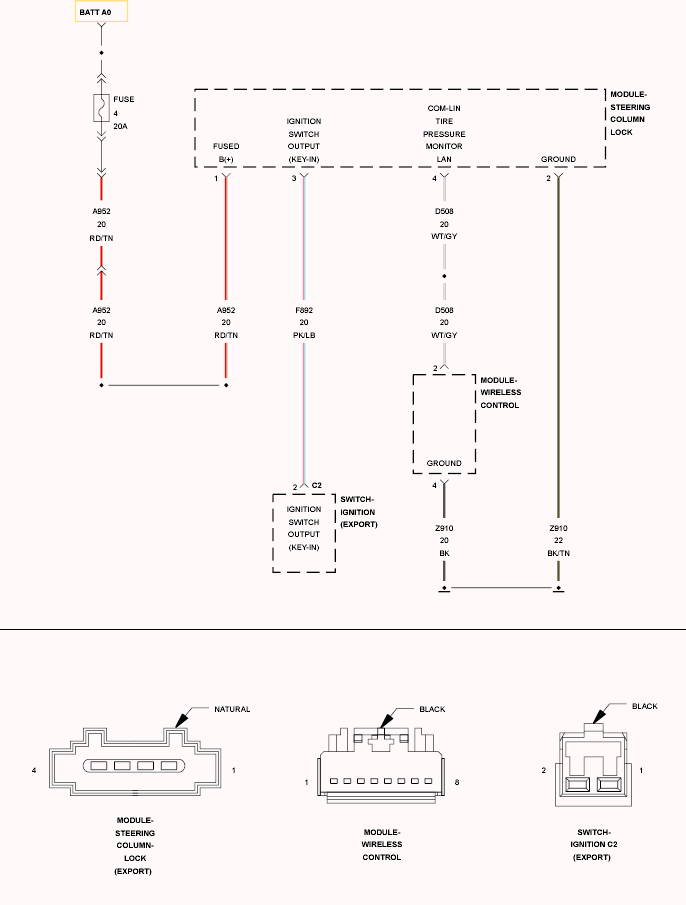

Fig 1: Steering Column Lock Module Circuit Wiring Diagram
Courtesy of CHRYSLER GROUP, LLC
For a complete wiring diagram,
refer to appropriate SYSTEM WIRING DIAGRAMS article
.
