B185A-Driver Window Position Sensor Circuit Performance: Notes

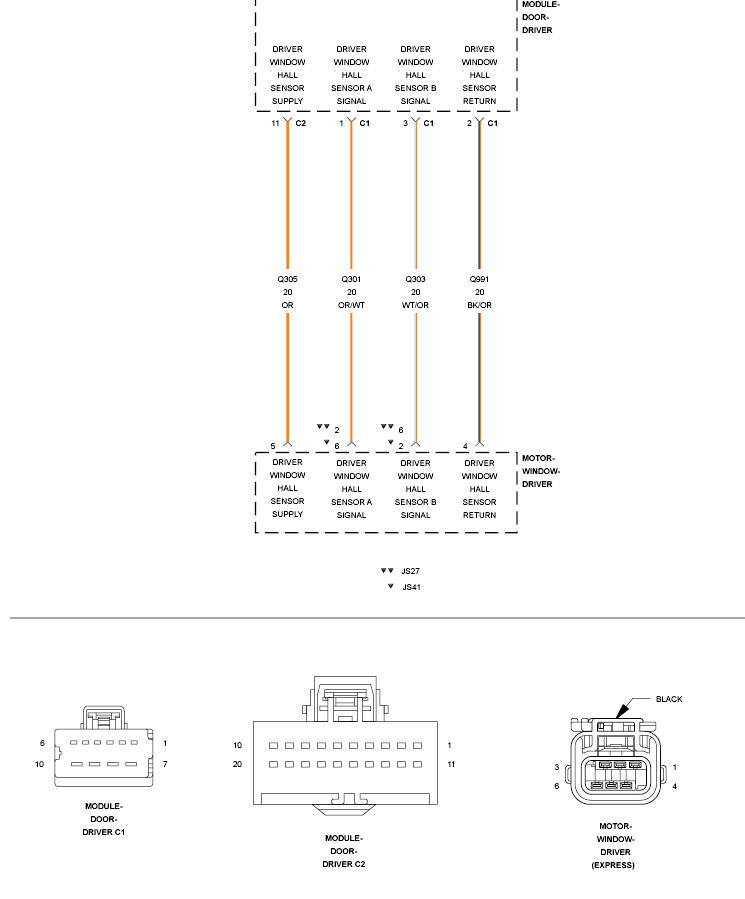

Fig 1: Driver Window Position Sensor Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
