Sensor, Air Temperature, Inlet: Installation: Installation

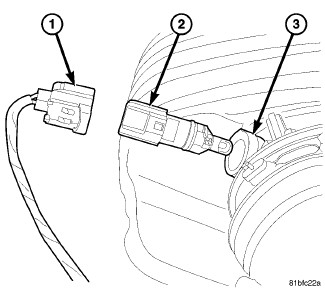

Fig 1: Air Temperature Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Install the inlet air temperature sensor (2) to the air box (3) by turning the sensor 1/4 turn in the clockwise direction.
2. Connect the inlet air temperature sensor electrical connector (1).
3. Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
