P0461-Fuel Level Sensor 1 Performance: Notes

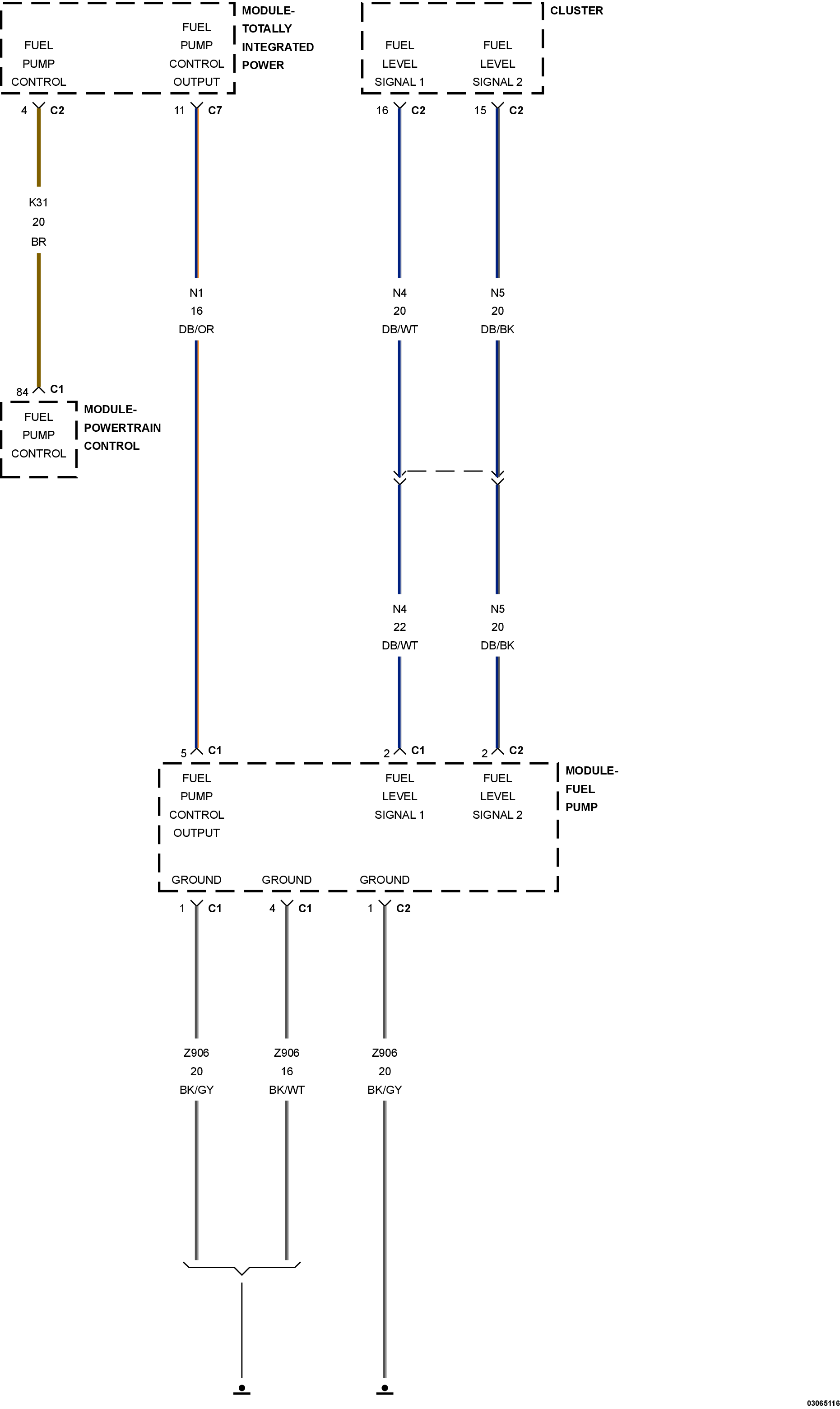

Fig 1: Fuel Pump Circuit Wiring Diagram
GC0149780Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
