P0571-Brake Switch 1 Performance: Notes

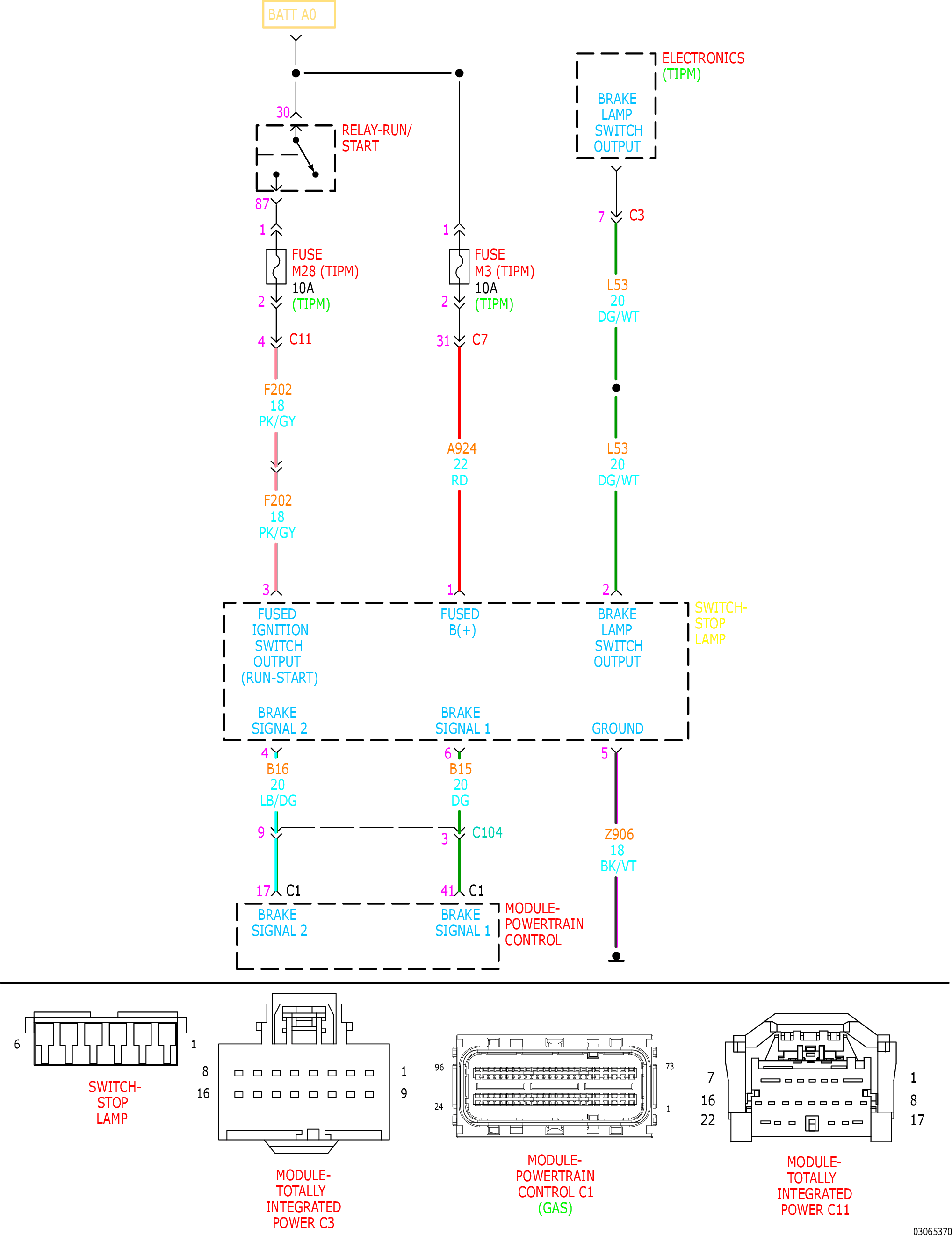

Fig 1: Brake Switch Circuit Wiring Diagram
GC0149783Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
