Left Hand Drive

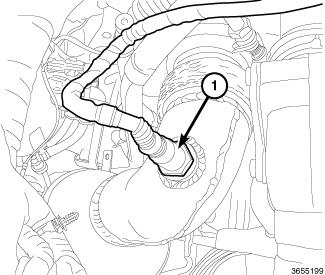

Fig 1: Oxygen Sensor
GC0152277Courtesy of CHRYSLER GROUP, LLC
  1. Install the oxygen sensor (1) and tighten to 50 N.m (37 ft. lbs.).
    Fig 2: Oxygen Sensor Connector & Ball Stud Fastener
    GC0146434Courtesy of CHRYSLER GROUP, LLC
  2. Connect the oxygen sensor harness connector (1).
    Fig 3: Engine Cover
    GC0152109Courtesy of CHRYSLER GROUP, LLC
  3. Install the engine cover (1).
  4. Connect the negative battery cable.
