P2108-Electronic Throttle Control Module Performance: Notes

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article .

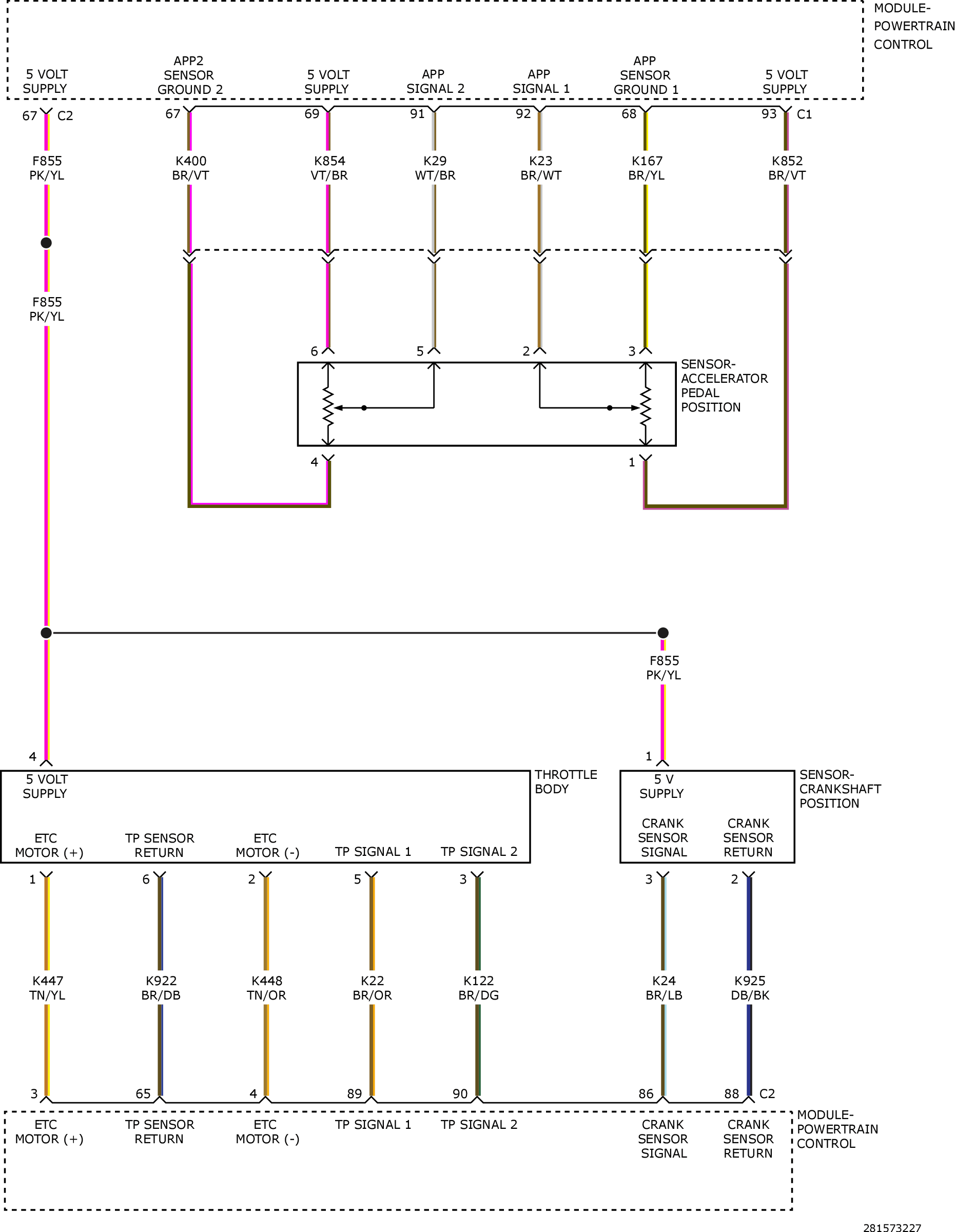

Fig 1: Electronic Throttle Control Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC
