Charging System (Service Information): Generator: Installation: 3.6L

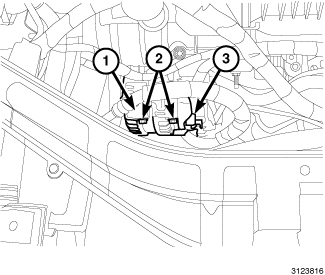

Fig 1: Electrical Connector, Generator & Two Upper Mounting Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Position the generator (1) onto the engine mounting bracket.
2. Install the two upper mounting bolts (2) and the lower mounting bolt to generator (1). Tighten bolts to 42 N.m (31 ft. lbs.).
3. Connect the field wire connector (3) to the generator.
4. Install B+ terminal and nut to generator mounting stud. Tighten nut to 10 N.m (88.5 in. lbs.)
5. Snap the plastic protective cover over the B+ terminal.
   Fig 2: Belt Tensioner, Accessory Drive Belt

   Courtesy of CHRYSLER GROUP, LLC
6. Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
7. Install the engine cooling fan assembly. Refer to FAN, COOLING, INSTALLATION .
8. Install the engine oil dipstick tube.
9. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION - 2.4L or BODY, AIR CLEANER, INSTALLATION - 3.6L.
   Fig 3: Identifying Battery Cables & Terminals

   Courtesy of CHRYSLER GROUP, LLC
10. Connect negative battery cable (2), tighten nut (1) to 4.5 N.m (40 in. lbs.).
11. Start the engine and verify the generator is functioning properly.
