Sensor, Crankshaft Position: Installation: Installation

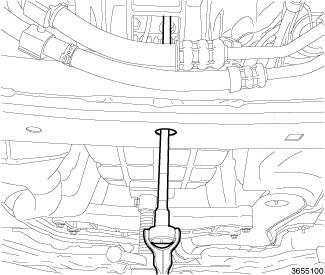

Fig 1: Access Hole, Bolt & CKP Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Clean the area and bore around Crankshaft Position (CKP) sensor.
2. Install the CKP sensor (2). Tighten bolt (3) to 6 N.m (53 in. lbs.).

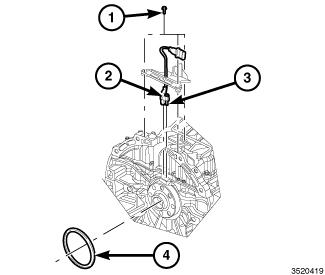

   Fig 2: CKP Sensor, Seal & Fasteners

   Courtesy of CHRYSLER GROUP, LLC
3. Install the CKP sensor cover. Tighten bolts (1) to 8 N.m (71 in. lbs.).

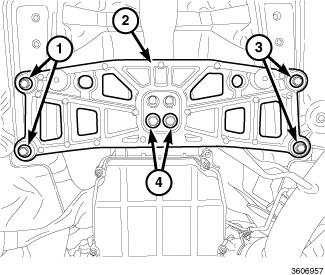

   Fig 3: Rear Crossmember & Bolts

   Courtesy of CHRYSLER GROUP, LLC
4. Lower the transmission jack so the weight is resting on the isolator.
5. Install the rear engine mount isolator bolts (4) and tighten to 61 N.m (45 ft. lbs.).

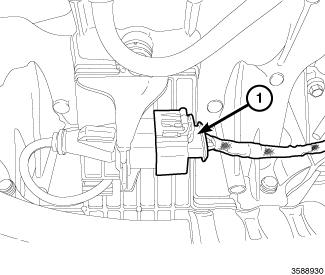

   Fig 4: Crankshaft Position Sensor (CKP) Wiring Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
6. Connect the CKP wire harness connector (1).
7. Install the transmission belly pan.
8. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
9. Connect the negative battery cable.
