P0627-Fuel Pump Control Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

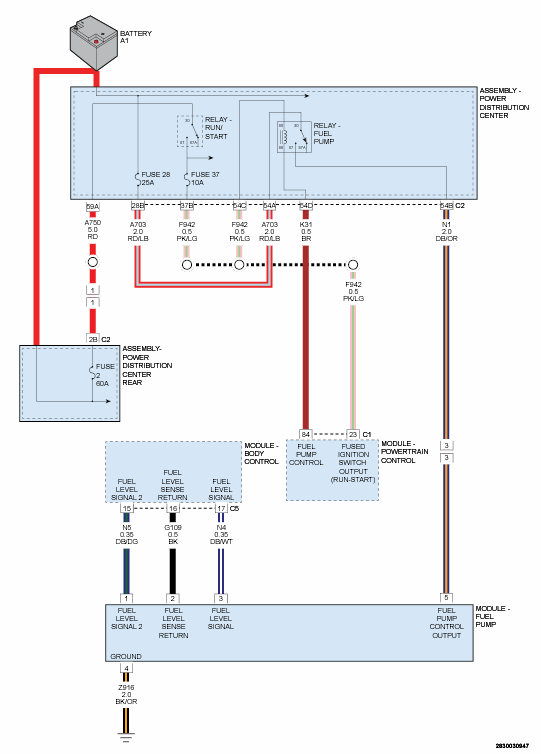

Fig 1: Fuel Lever Sensor Circuit Diagram
GC0160796Courtesy of CHRYSLER GROUP, LLC
