P1704-Input Speed Sensor 1 OVERSPEED: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

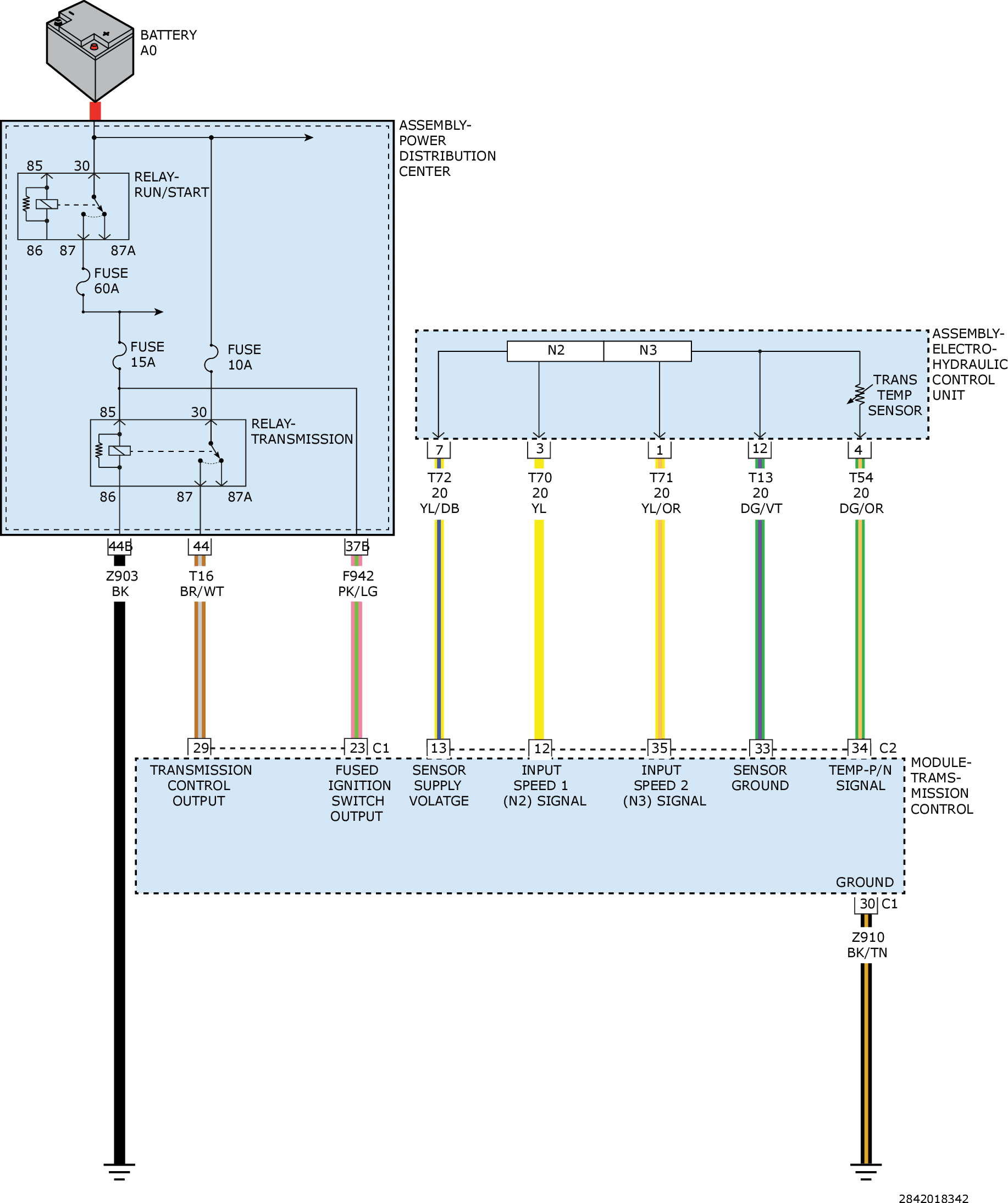

Fig 1: Electro-Hydraulic Control Unit Assembly, Input Speed Sensors & Transmission Temperature Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
