Module, Drivetrain Control: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Install the Drivetrain Control Module (DTCM) to the mounting studs.

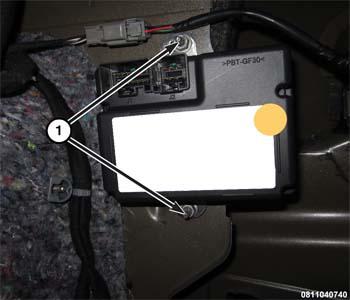

2. Install the DTCM mounting nuts (1) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

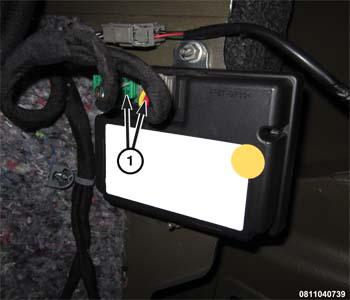

3. Connect the wire harness connectors (1).

   Courtesy of CHRYSLER GROUP, LLC

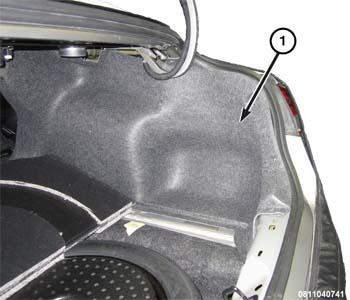

4. Position the trunk welt (1) back in place and install the fasteners.
5. Install the trunk trim panel. Refer to PANEL, TRUNK TRIM, INSTALLATION .
6. Connect the negative battery cable.
7. Perform the DTCM verification test. Refer to DTCM VERIFICATION TEST .
