Motor, Window Regulator: Removal
- Disconnect and isolate the negative battery cable.
- Remove the door interior trim panel (2). Refer to PANEL, DOOR TRIM, REMOVAL
for the appropriate procedure, or Refer to PANEL, REAR DOOR TRIM, REMOVAL
.

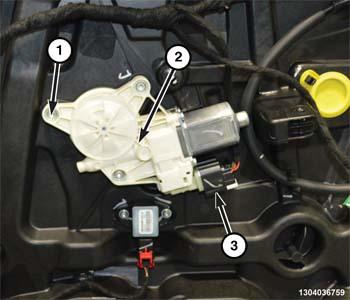

- Disconnect the power window motor electrical connector (3).
- Remove the three fasteners (2) that secure the power window motor and gear assembly (1) to the carrier plate and remove the motor and gear assembly.
