Removal And Installation - Emergency Assistance Module: Removal

WARNING: This page is about a different variant/trim than selected.

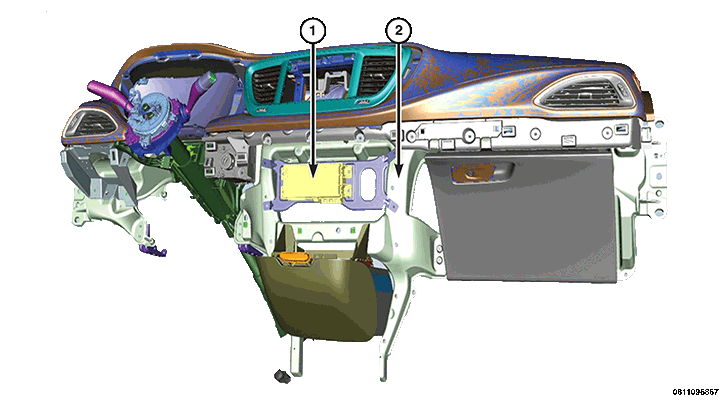

GC0177812Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the switch bank pod from the instrument panel cover. Refer to POD, SWITCH BANK, REMOVAL AND INSTALLATION .

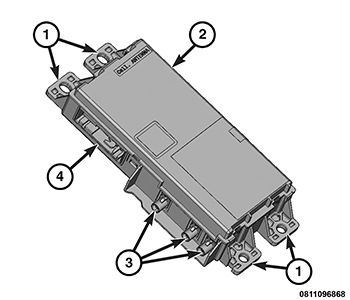

    GC0178283Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the instrument panel wiring harness connector and antenna connectors from the Emergency Assistance Module (EAM).
  4. Remove the four screws from the EAM mounting bracket that secure the EAM to the bracket.
  5. Remove the EAM from the vehicle.
