Charging System (Service Information): Generator: Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Position the generator, install all bolts to engine finger tight, then tighten fasteners to specification.

Position the generator to the engine and install the lower retaining bolt (1) finger tight.
Lower the vehicle.

Courtesy of CHRYSLER GROUP, LLC

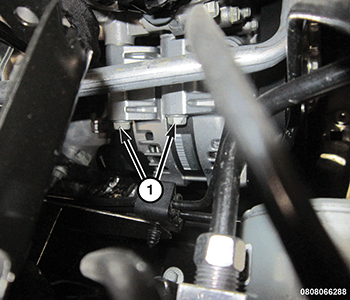

Install the upper generator retaining bolts (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Snap the field wire connector into the rear of the generator.
Position the generator B+ terminal eyelet to the generator output stud, install the retaining nut and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Install the insulator cover onto the B+ output terminal.
Raise and support the vehicle.

Courtesy of CHRYSLER GROUP, LLC

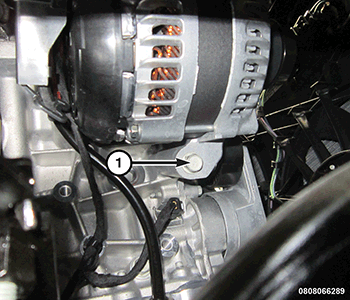

Tighten the lower generator retaining bolt to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Position the belly pan and install the belly pan retainers (1).
Lower the vehicle.
CAUTION:
When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump will be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat.

CAUTION:
Do not let the tensioner arm snap back to the freearm position, sever damage may occur to the tensioner.

Courtesy of CHRYSLER GROUP, LLC
Rotate the accessory drive belt tensioner (7) counterclockwise until it contacts the stop and install the accessory drive belt (4) onto the pulleys and slowly release the tensioner.
Connect the negative battery cable and tighten nut to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
