Sensor, Oxygen: Installation: 5.7L: Upstream

Threads of new oxygen sensors are factory coated with anti-seize compound to aid in removal. Do not add any additional anti-seize compound to threads of a new oxygen sensor.

Courtesy of CHRYSLER GROUP, LLC

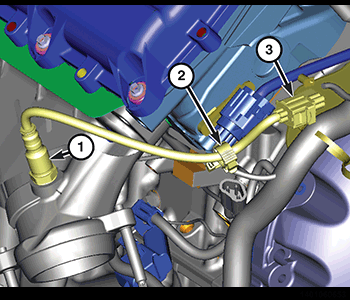

1. Install the oxygen sensor (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
2. Position the oxygen sensor wire harness into the retainer and engage the retainer.
3. Connect the oxygen sensor wire harness connector.
4. Remove support and lower the vehicle.
5. Connect the negative battery cable.
