Sensor, Fuel Tank Pressure: Removal
- Disconnect and isolate the negative battery cable.
- Remove the rear wheelhouse splash shield from the vehicle. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL
.
- Disconnect the fuel tank pressure sensor electrical connector (1).
- Disconnect the fuel tank vent line at the filler tube (3) and the fuel tank vent steel line (6).

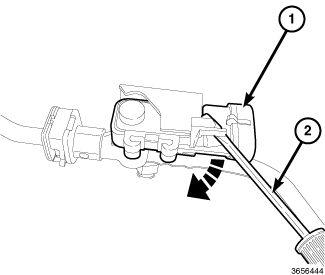

- Carefully raise the retaining tab (2), rotate and remove the fuel tank pressure sensor (1) from the fuel tank vent tube.
