Module, Fuel Pump Control: Installation
WARNING: This page is about a different car, the 2018 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.
- Position the Fuel Pump Control Module (FPCM) to the right quarter inner panel above and behind the right rear wheel house.

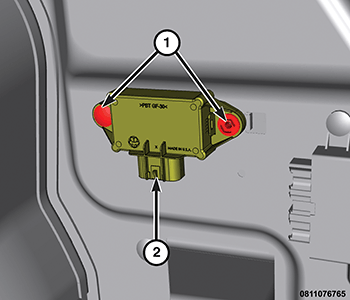

- Securely install the fasteners (1) that secure the FPCM to the right quarter inner panel.
- Connect the body wire harness connector (2) to the FPCM connector receptacle.
- Install the right trunk carpet. Refer to CARPET, INSTALLATION .
- Connect the negative battery cable.
