Motor, Window Regulator: Installation

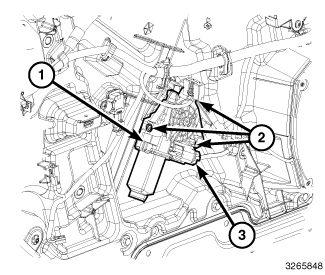

GC0144826Courtesy of CHRYSLER GROUP, LLC
NOTE:

The power window motor may need to actuated momentarily to line up the gear in the drive assembly with the regulator.

  1. Connect the power window motor wire harness connector (3).
  2. Position the power window motor and gear assembly (1) on the carrier plate, aligning the drive gear with the regulator.
  3. If necessary, temporarily connect the window switch assembly and battery to actuate the motor.
  4. Install and tighten the fasteners (2) that secure the power window motor and gear assembly to the carrier plate.
  5. Install the door interior trim panel. Refer to PANEL, DOOR TRIM, INSTALLATION for the appropriate procedure. Refer to PANEL, REAR DOOR TRIM, INSTALLATION .
  6. Connect the negative battery cable.
  7. Perform the Clear/Relearn procedure. Refer to STANDARD PROCEDURE .
