Arm, Lower Control, AWD: Installation

NOTE:

Left side shown, right side similar.

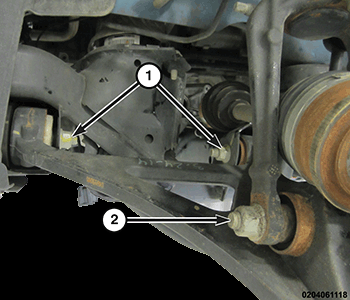

GC0170652Courtesy of CHRYSLER GROUP, LLC
  1. Install the lower control arm into the cradle.
    NOTE:

    When installing lower control arm engine cradle bolts, take note that the forward bolt is installed front-to-rear and the rearward bolt is installed rear-to-front.

  2. Install lower control arm to cradle bolts and nuts (1). Do not tighten bolts at this time.

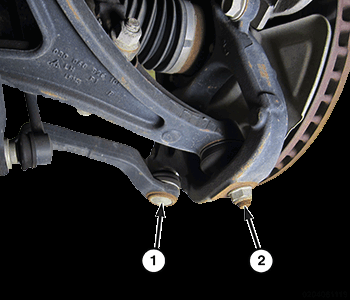

    GC0170737Courtesy of CHRYSLER GROUP, LLC
  3. Install the lower ball joint stud into knuckle (2). Install NEW  nut on ball joint stud, and tighten the lower ball joint to knuckle nut to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

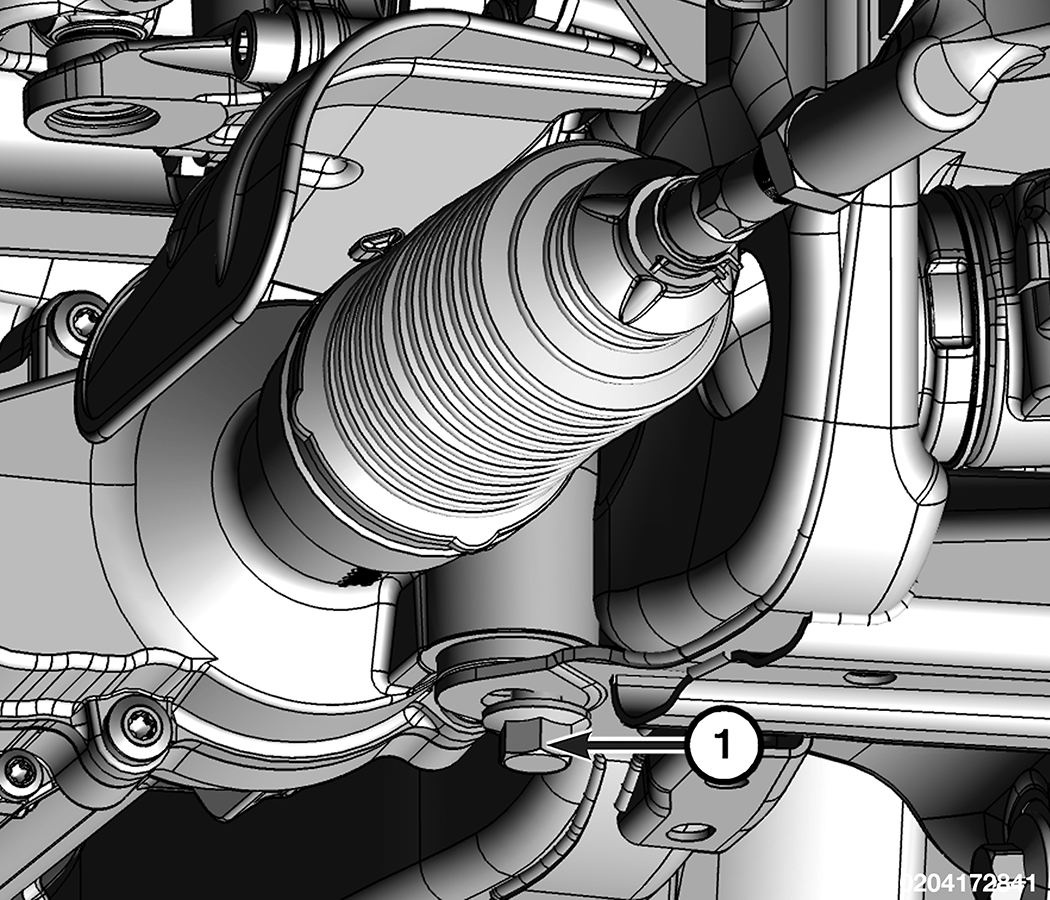

    GC0200205Courtesy of CHRYSLER GROUP, LLC
  4. Position the steering gear to the subframe.
  5. Install both power steering gear bolts (1) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

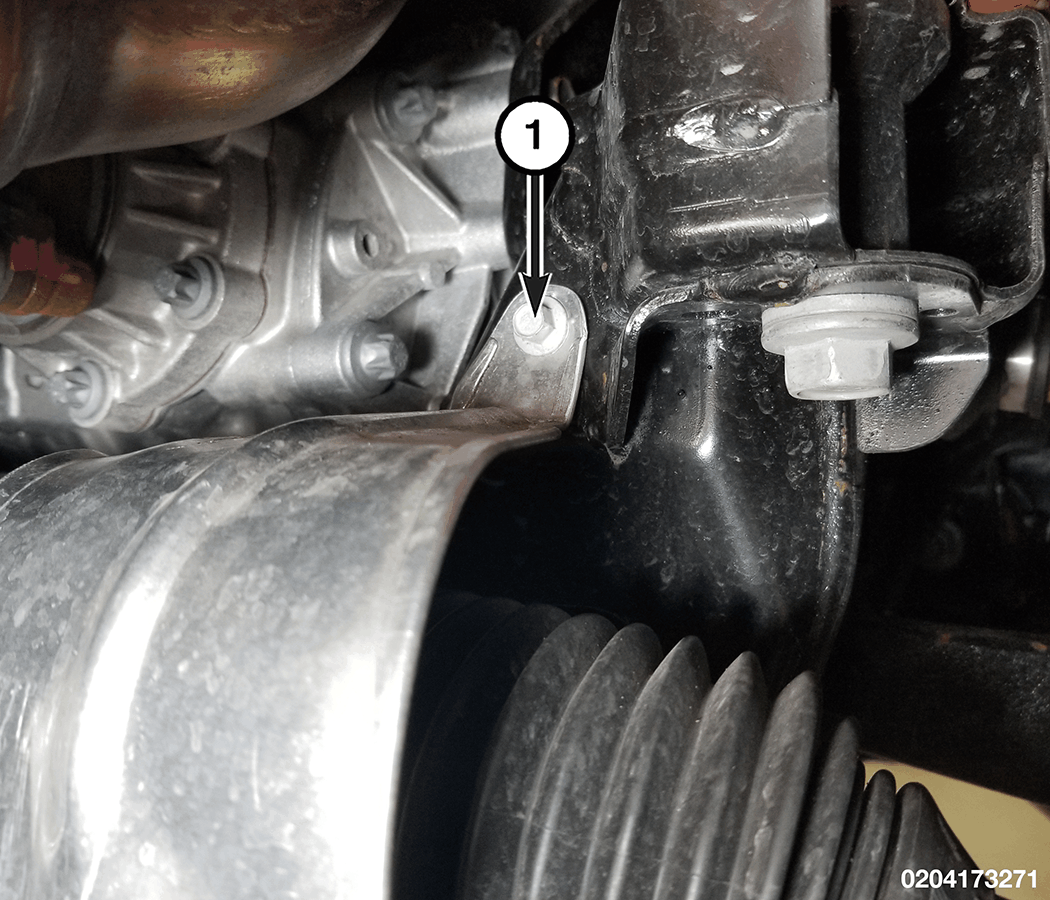

    GC0200197Courtesy of CHRYSLER GROUP, LLC
  6. Install the heat shield bolt (1) and tighten securely.
    GC0170652Courtesy of CHRYSLER GROUP, LLC
  7. Align the strut clevis bracket with lower control arm bushing and install mounting bolt and nut (2). Do not tighten nut at this time.

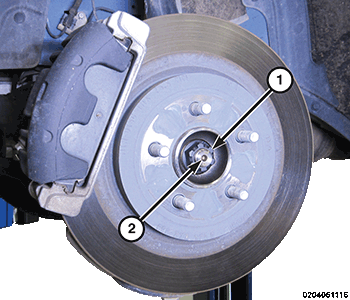

    GC0170660Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Always install a NEW  hub nut. The original hub nut is one-time use only and should be discarded when removed.

  8. Install hub nut (1) on end of axle halfshaft (2). While a helper applies brakes to keep hub from turning, tighten nut to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  9. Install the tire and wheel assembly. Refer to INSTALLATION .
  10. Remove the support and lower the vehicle.
  11. Position vehicle on an alignment rack/drive-on lift.
    GC0170652Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    When tightening the strut clevis to lower control arm bolt and nut (2), do not attempt rotating bolt. Bolt shaft is serrated. Turn nut only.

  12. Tighten the strut clevis to lower control arm bolt and nut (2) to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  13. Perform wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
  14. Once camber is found to be within specifications, tighten lower control arm to cradle bolts and nuts (1) to the proper while holding the bolts stationary. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  15. Install belly pan. Refer to BELLY PAN, INSTALLATION .
