Anti-Lock Brake System (Abs) Module: Removal
WARNING: This page is about a different variant/trim than selected.
- Power down the 12-volt system. Refer to
the appropriate information. Wait two minutes for the system capacitor to discharge before further service.
1 - ABS Electrical Connector 2 - Solvent Fill Tube Mounting Bolt 3 - HCU Mounting Bolts - Remove the washer solvent fill tube mounting bolt, and reposition the washer solvent fill tube.

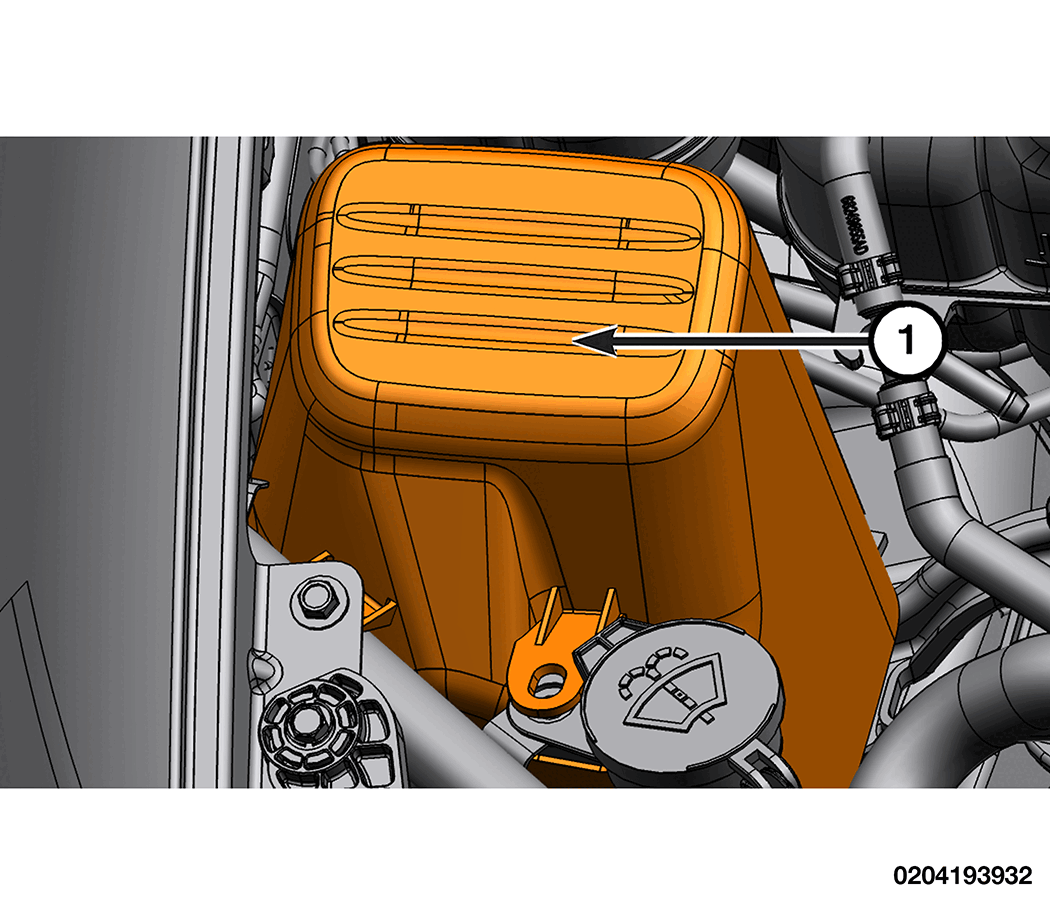

1 - HCU Cover - If equipped, remove the Hydraulic Control Unit (HCU) cover.
- Remove the right front headlamp. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION
.
1 - ABS Electrical Connector 2 - Solvent Fill Tube Mounting Bolt 3 - HCU Mounting Bolts - Disconnect the Anti-lock Brake System (ABS) electrical connector.
- Remove the four Anti-lock Brake System (ABS) module to hydraulic control unit (HCU) mounting bolts.
- Carefully separate the ABS module from the HCU.
- Remove the ABS module from the vehicle.
