With Integrated Screen: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

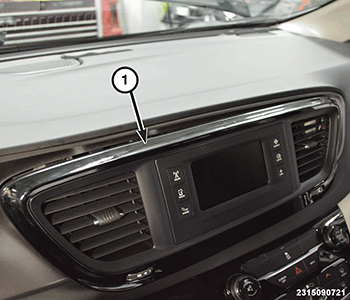

1 - Radio Trim Bezel - With a suitable tool, remove the radio trim bezel and disconnect the wire harness connectors.
- Remove the radio to radio bezel screws, and remove the radio from the bezel.
