Removal And Installation

WARNING: This page is about a different car, the 2025 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

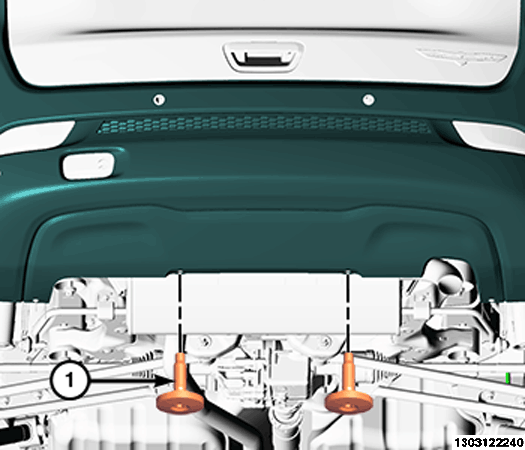

  2. Remove the lower screws (1).
    GC0179267Courtesy of CHRYSLER GROUP, LLC
  3. Remove the fasteners (2) and remove the heat shield (1).
    GC0202700Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the body wiring harness connectors (2) from the Hands Free Entry Power Liftgate (HFEPLG) module.
    GC0202698Courtesy of CHRYSLER GROUP, LLC
  5. Remove the fasteners (1) securing the HFEPLG module with sensor assembly to the fascia.
  6. Remove the HFEPLG module (3) with sensor from the fascia.
GC0202698Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

  1. Position the Hands Free Entry Power Liftgate (HFEPLG) module (3) to the fascia for installation.
  2. Install the fasteners (1) to secure the HFEPLG module with sensor to the fascia and seat fully.
  3. Connect the wiring harness connectors (2) to the HFEPLG module.
  4. Install the heat shield (1).
    GC0202700Courtesy of CHRYSLER GROUP, LLC
  5. Install the fasteners (2) and tighten securely.
  6. Install the lower screws (1).
    GC0179267Courtesy of CHRYSLER GROUP, LLC
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
