Spring Link

REMOVAL

1. Remove the rear spring. Refer to SPRING(S), REMOVAL AND INSTALLATION .
2. Remove the jack from the spring link.

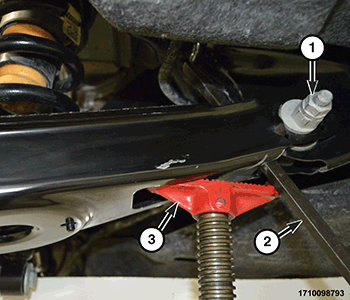

   Courtesy of CHRYSLER GROUP, LLC

   1 - Crossmember Mounting Nut

   2 - Tool

   3 - Jack

3. Remove the spring link to knuckle mounting bolt.

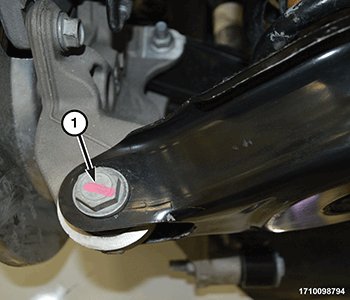

   Courtesy of CHRYSLER GROUP, LLC

   1 - Knuckle Mounting Bolt

4. Remove the spring link from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Torque all fasteners with the vehicle on the ground at ride height.
• Install the spring link to knuckle mounting bolt. Do not tighten the fastener at this time.
