System Fuse: Notes

The ABS system fuse, EF6, is located in the engine fuse block, the fifth system fuse in the row behind the main fuse, EF1, which is mounted diagonally at the front of the fuse block, toward the battery.

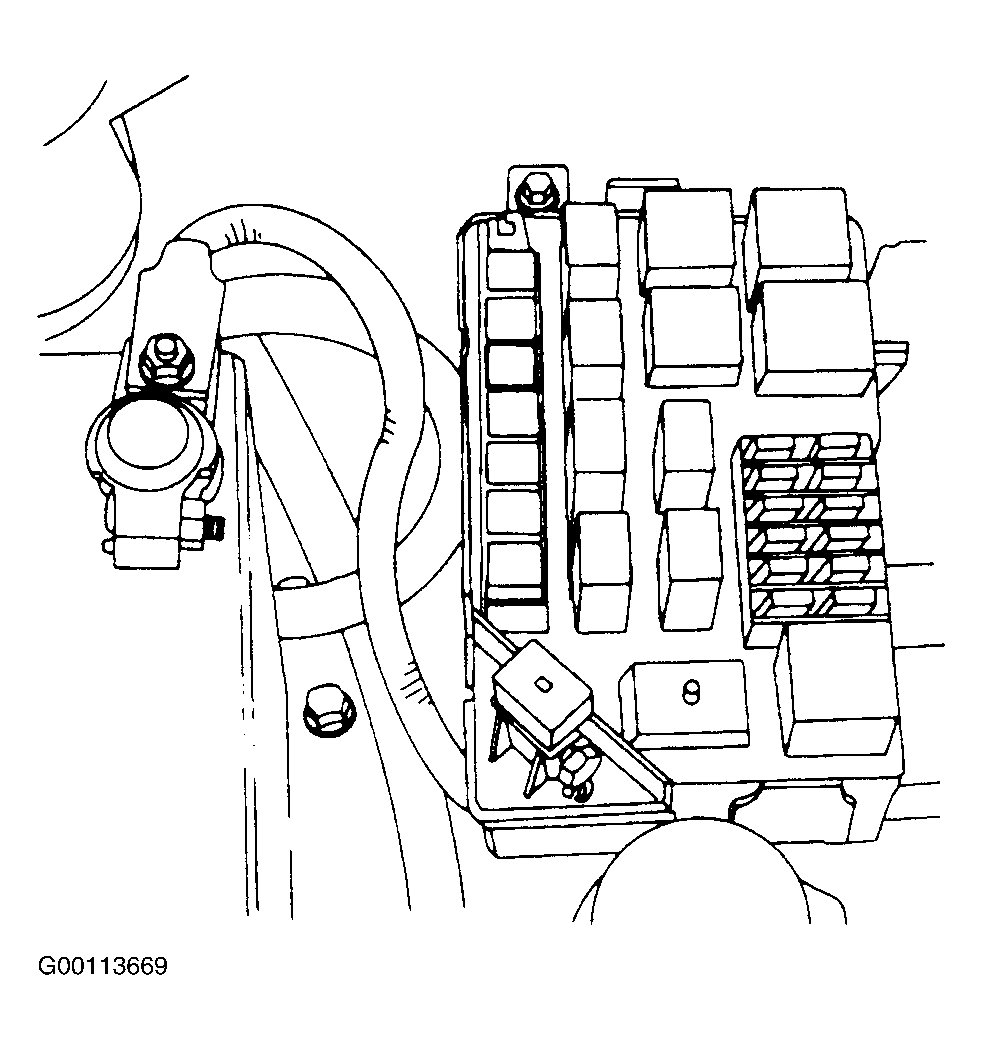

Fig 1: Locating System Fuse
G00113669Courtesy of DAEWOO MOTOR AMERICA, INC.
