Daewoo
›
1999
›
Nubira CDX, 4D Hatchback, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
Data Display Tables
›
Engine Data Display
Engine Data Display

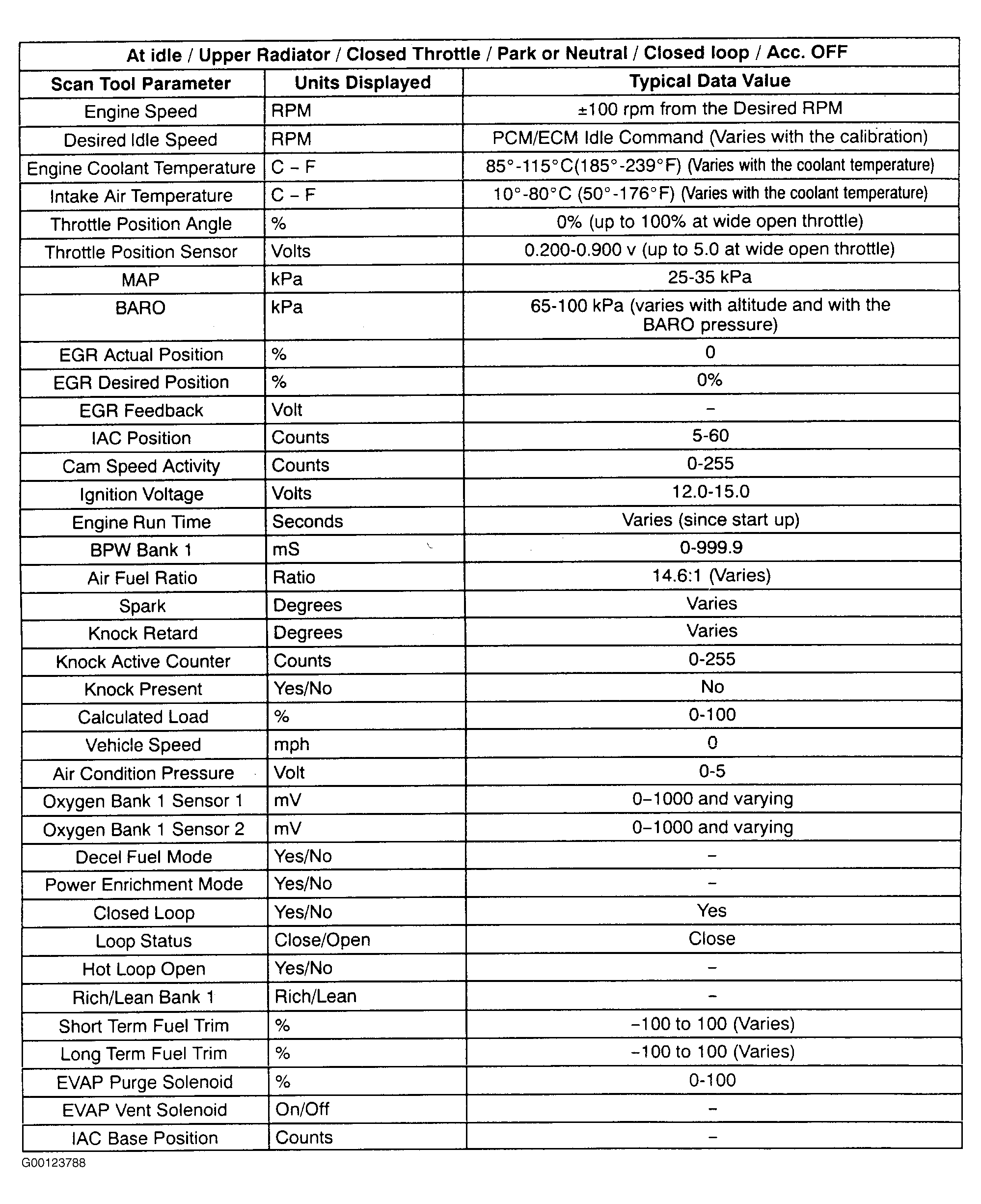

Fig 1: Engine Data Display Table (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

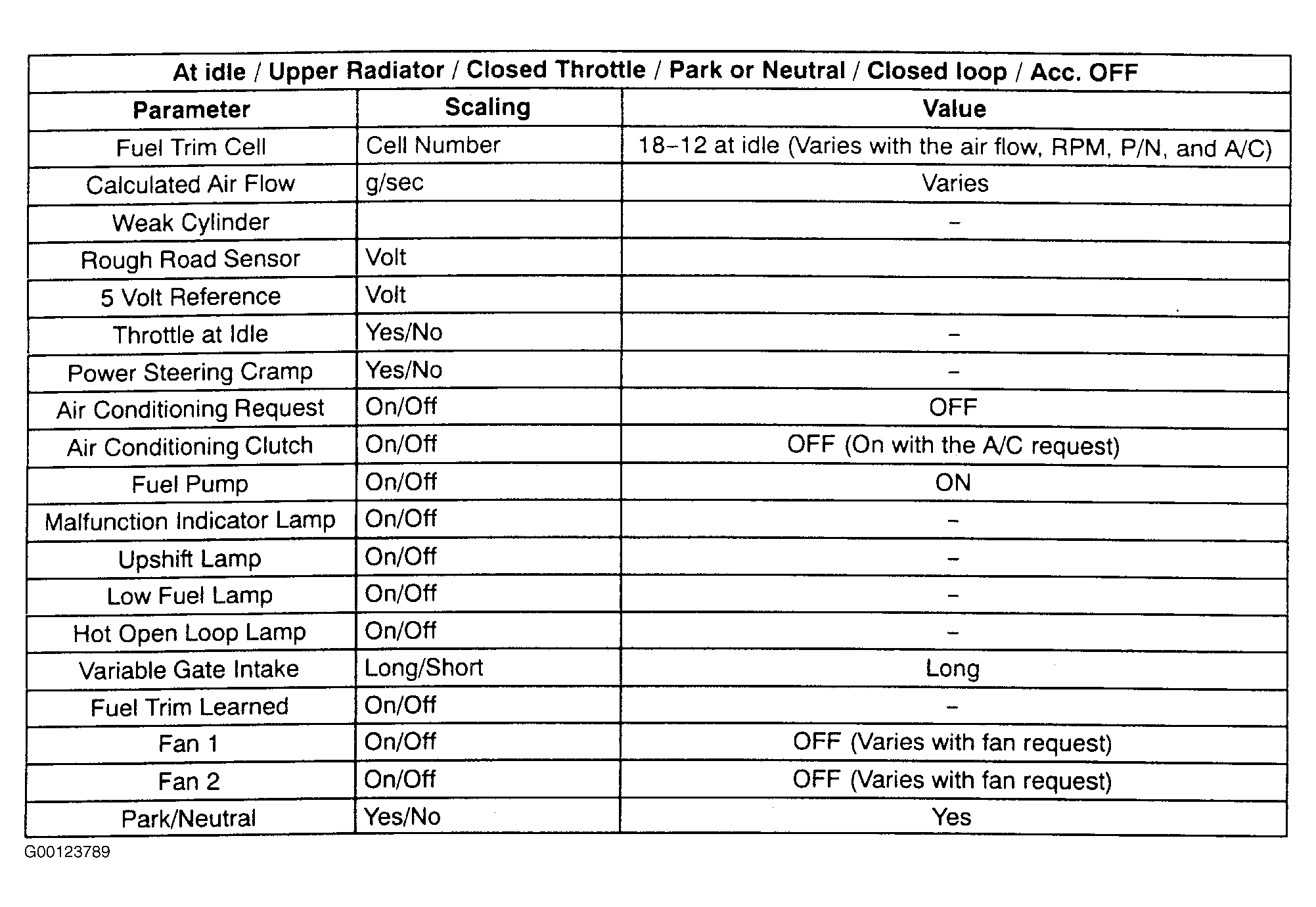

Fig 2: Engine Data Display Table (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
