DTC P0134: O2 Bank 1 Sensor 1 No Activity

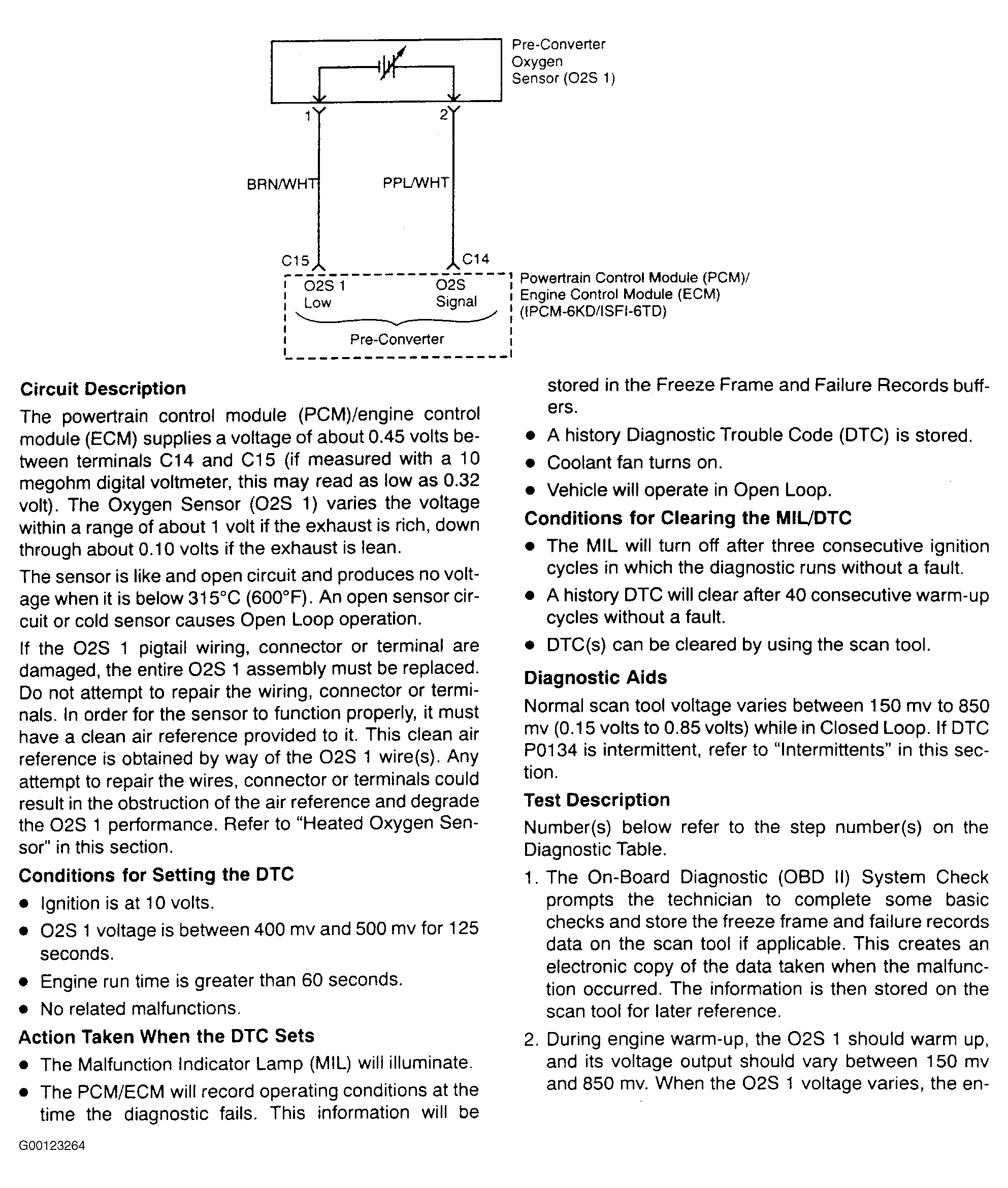

Fig 1: DTC P0134: O2 Bank 1 Sensor 1 No Activity (1 Of 3 )

Courtesy of DAEWOO MOTOR AMERICA, INC.

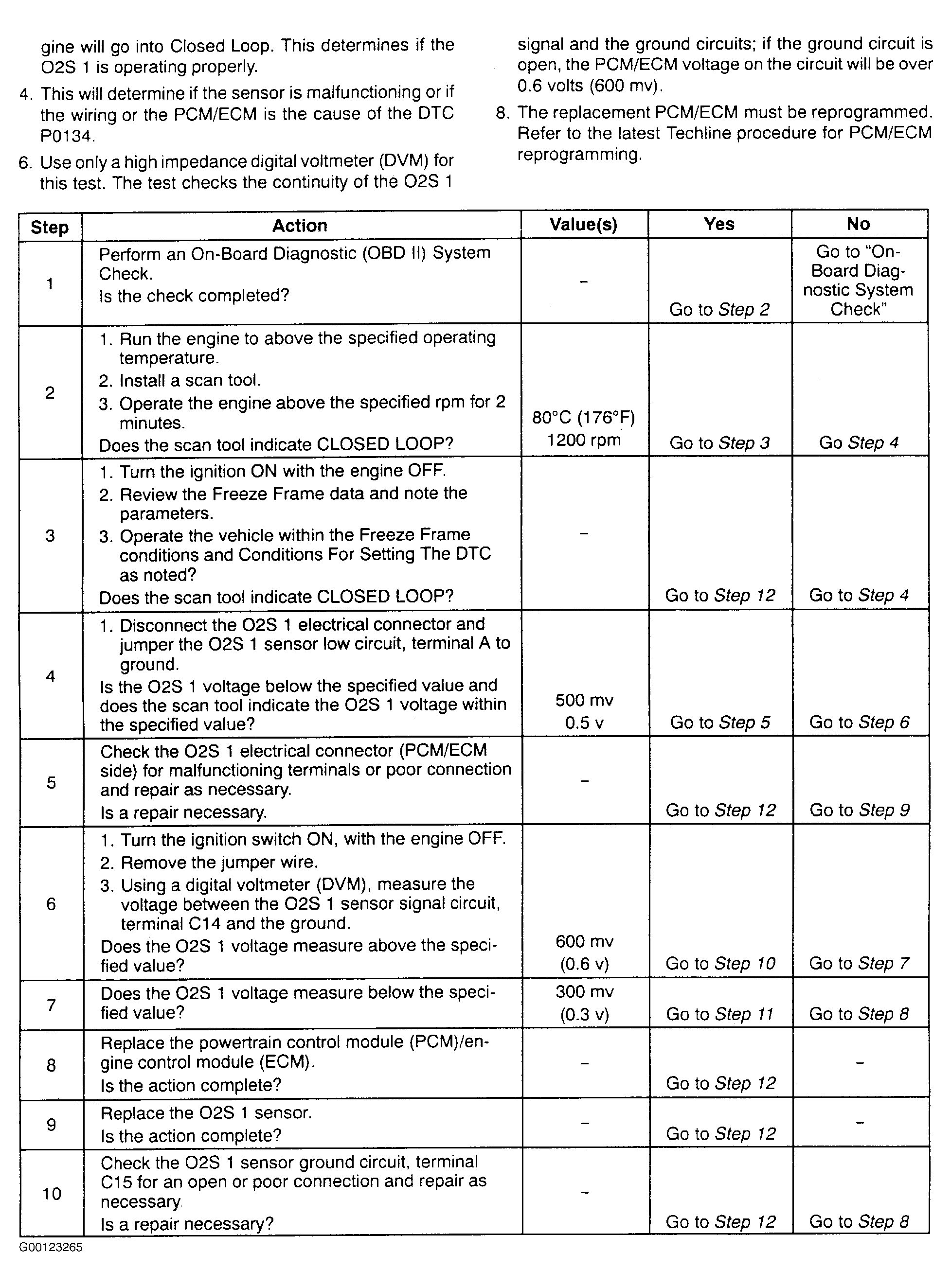

Fig 2: DTC P0134: O2 Bank 1 Sensor 1 No Activity (2 Of 3 )

Courtesy of DAEWOO MOTOR AMERICA, INC.

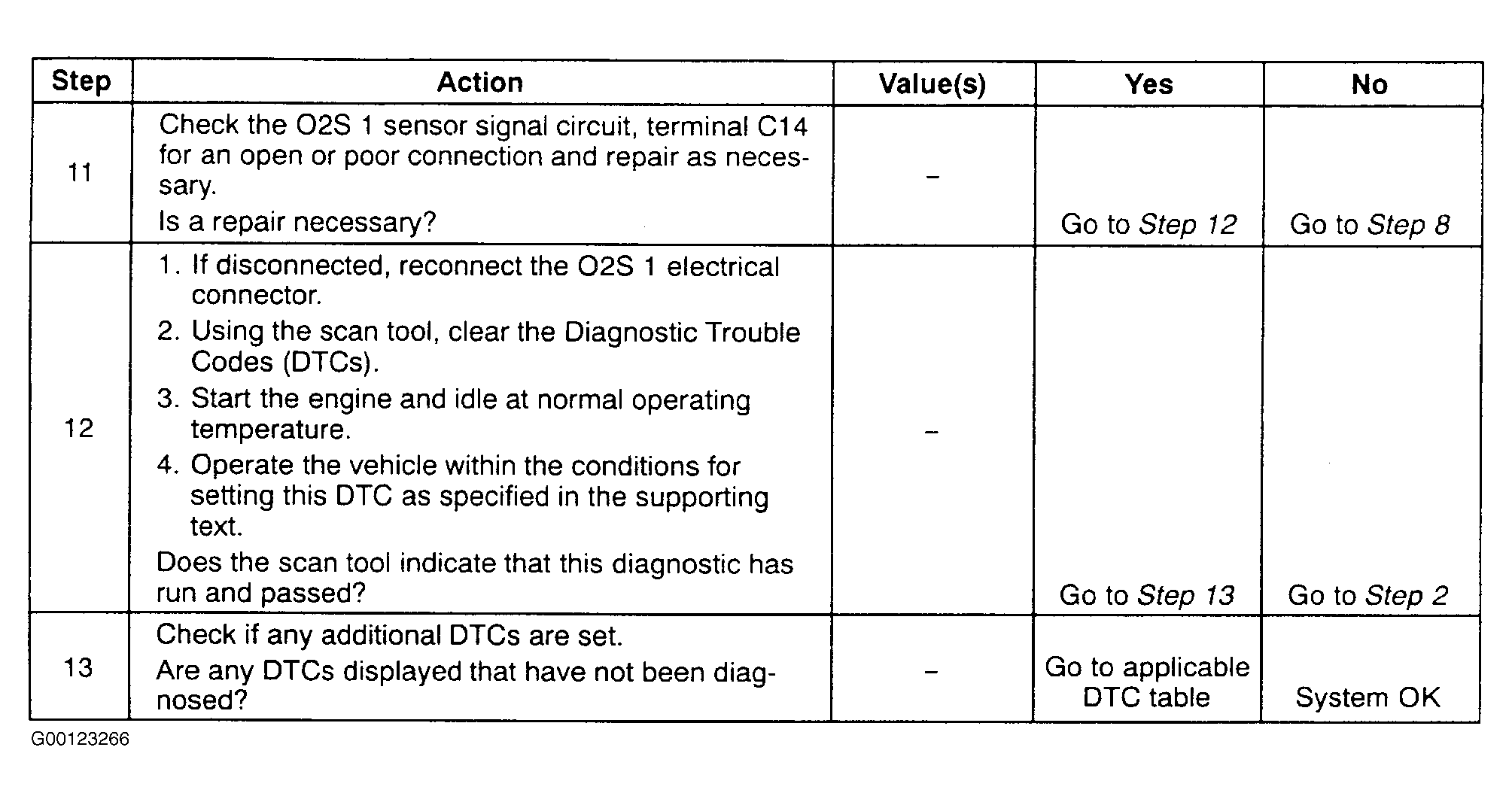

Fig 3: DTC P0134: O2 Bank 1 Sensor 1 No Activity (3 Of 3 )
