DTC P1134: O2 Bank 1 Sensor 1 Transition Ratio

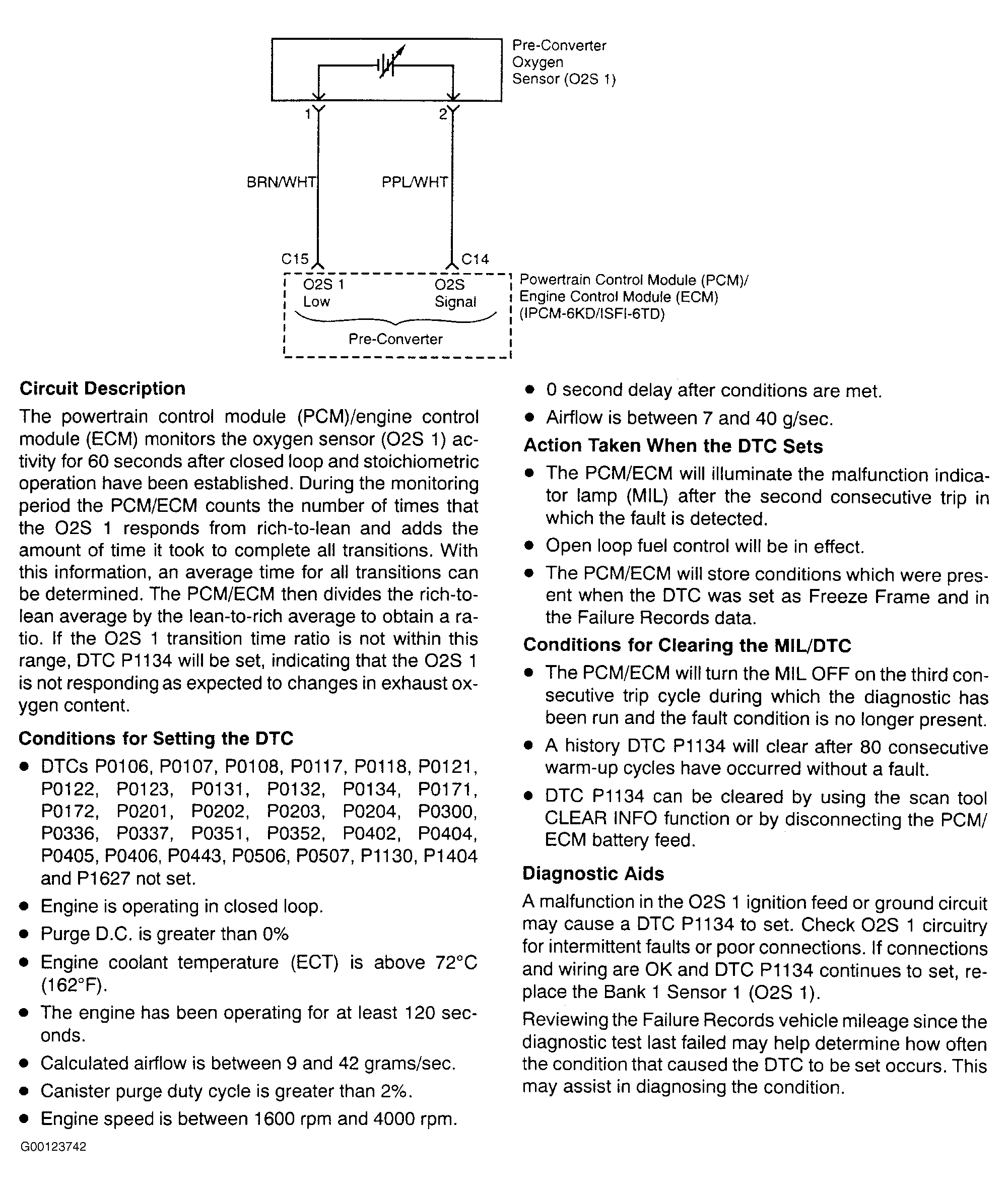

Fig 1: DTC P1134: O2 Bank 1 Sensor 1 Transition Ratio (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

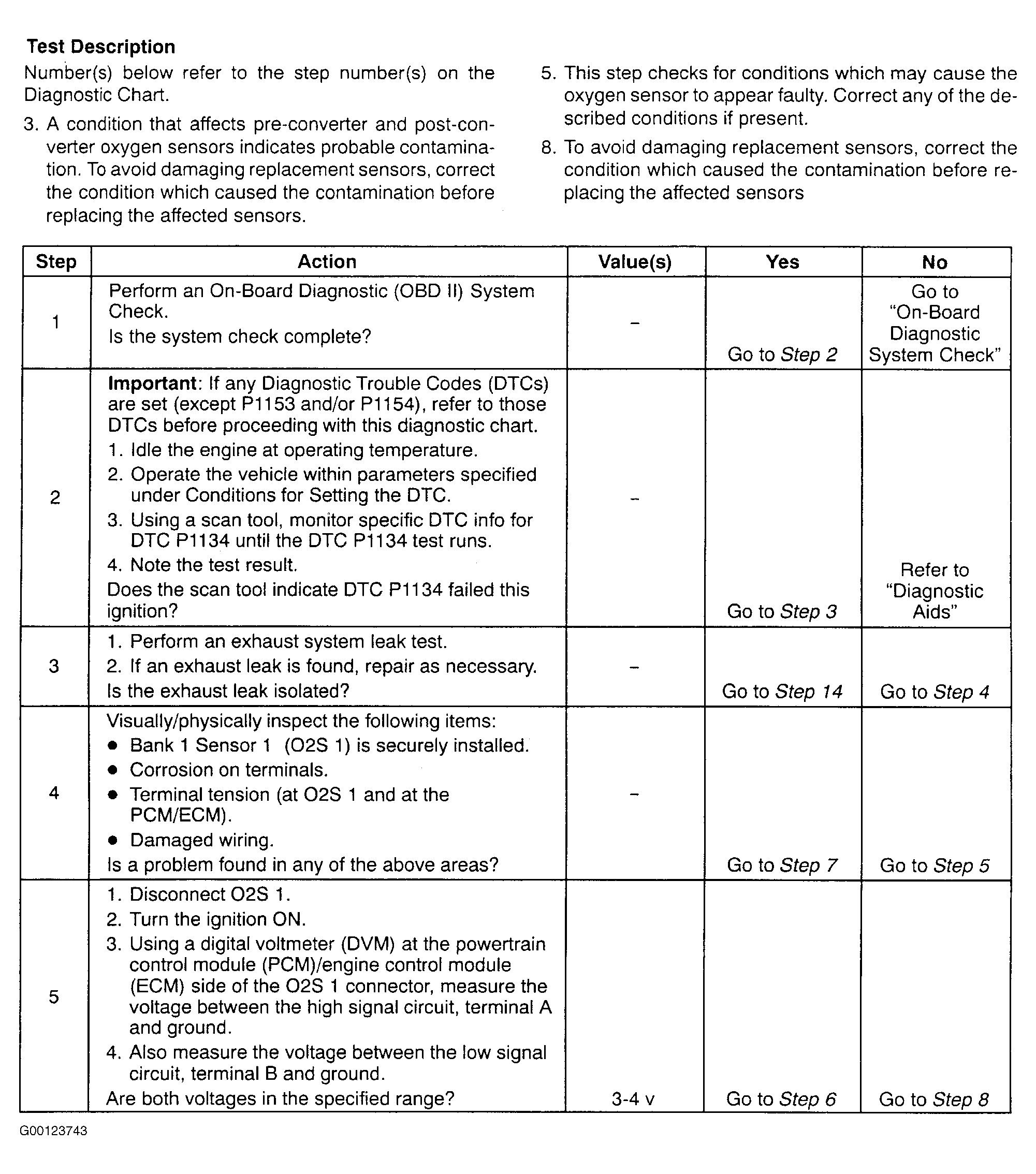

Fig 2: DTC P1134: O2 Bank 1 Sensor 1 Transition Ratio (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
