On-Board Diagnostic System Check

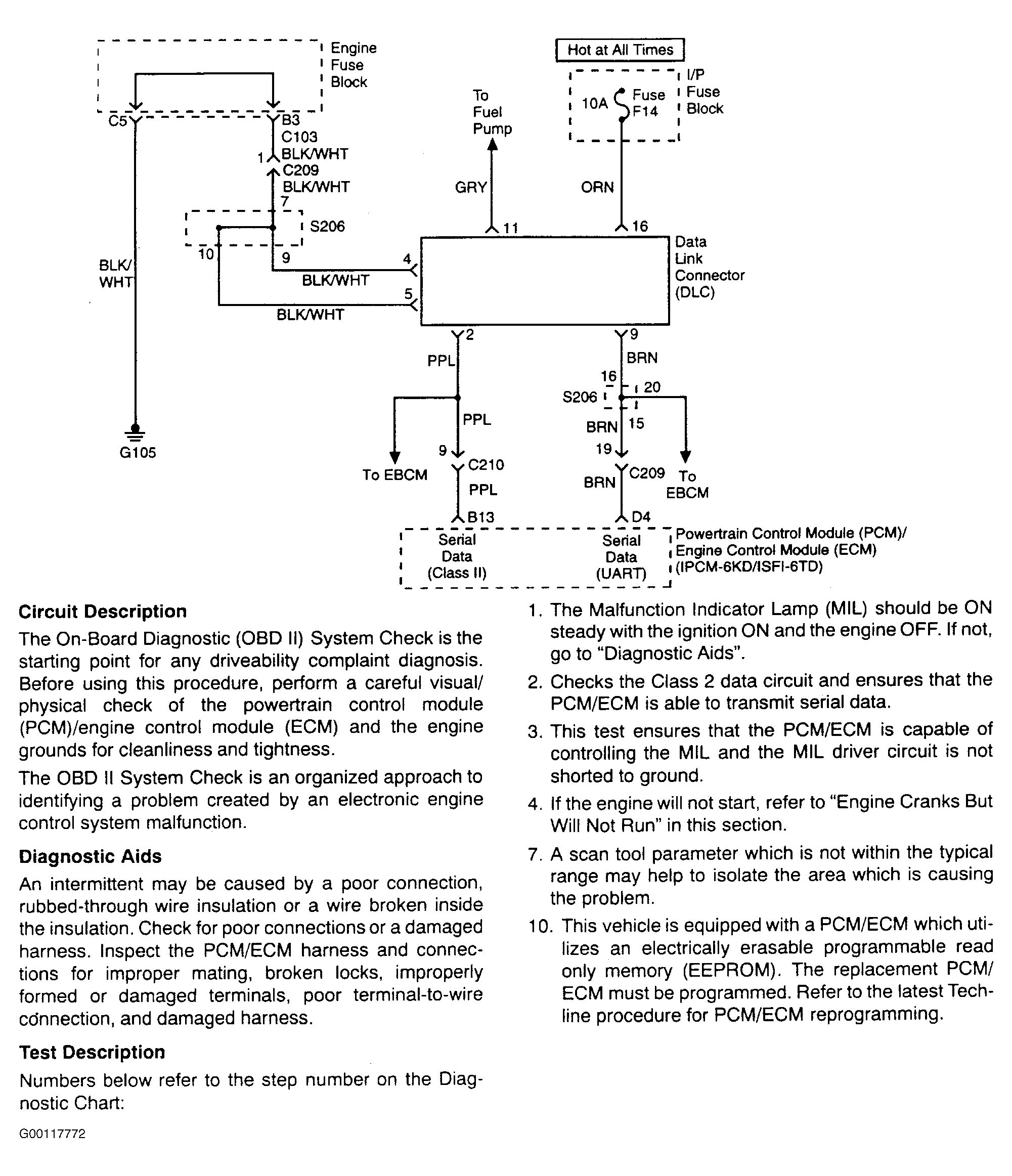

Fig 1: On-Board Diagnostic System Check (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

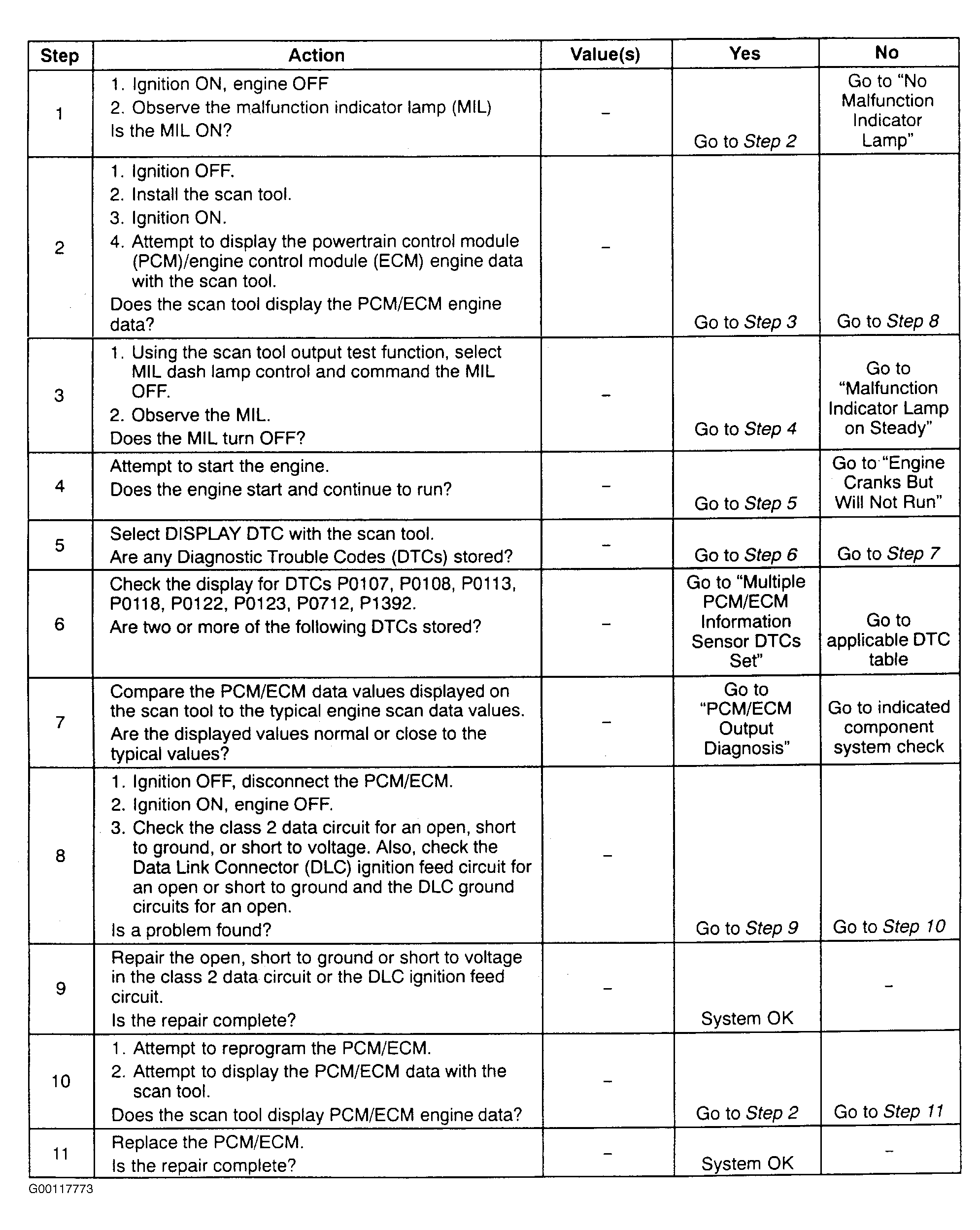

Fig 2: On-Board Diagnostics System Check (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
